RF MEMS: Advantages and Disadvantages

rf mems micro electromechanical system advantage disadvantage

This page covers the advantages and disadvantages of RF MEMS (Radio Frequency Micro Electro Mechanical Systems).

RF MEMS devices are fabricated using Micromachining techniques. This technology evolved from semiconductor device fabrication processes, employing methods such as surface micromachining and bulk micromachining for MEMS integration.

RF MEMS Advantages

Here are the key advantages of RF MEMS:

  • MEMS devices integrate both mechanical and electrical components on a micro scale.

  • These devices are fabricated using IC batch processing methods, resulting in smaller sizes, typically ranging from nanometers to millimeters (generally 20 micrometers to 1 millimeter).

  • MEMS devices offer better performance compared to non-MEMS devices, delivering low insertion loss, higher Q, and very low current consumption.

  • They minimize energy and material usage, thus lowering costs.

  • Various RF components, including RF switches, phase shifters, gyroscopes, accelerometers, sensors, oscillators, filters, and RF antennas, have been developed using this technology. RF MEMS switches are particularly useful in test and measurement applications due to their low switching time, low insertion loss, and high isolation characteristics.

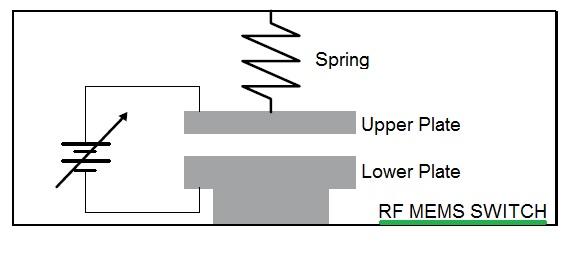

    RF MEMS Switch

  • RF MEMS devices are widely used across industries such as automotive (for measuring tire pressure, fuel pressure, oil pressure, etc.), biomedical (blood pressure sensors, implanted sensors, etc.), electronics, telecom, and defense.

  • MEMS devices are used in inkjet and bubblejet printers.

  • They improve reproducibility, sensitivity, accuracy, and reliability.

  • Modifying parts of a MEMS device is easier compared to its macro counterpart.

RF MEMS Disadvantages

Here are the key disadvantages of RF MEMS:

  • MEMS devices cannot handle very high power due to their size and the materials used in their construction (e.g., Poly-Si). RF scientists are actively working on developing RF MEMS devices with better material quality and the capacity to withstand high power.
  • Initial setup and establishment require a significant investment.
  • Polysilicon, often used in construction, is a brittle material.
  • The design process can involve complex procedures and processes.
