Explain SpaceX Starlink Network Architecture and its system elements

The SpaceX Starlink network is an ambitious satellite constellation project designed to provide global high-speed internet coverage, especially to underserved and remote areas. The architecture of the Starlink network includes several key system elements that work together to deliver internet services. The main three elements are user segments, gateway stations at groung segments and satellite constellation.

Starlink System Architecture

• Satellite Constellation: The Starlink constellation consists of thousands of small, low Earth orbit (LEO) satellites. These satellites are positioned in multiple orbital planes at altitudes ranging from approximately 340 km to 1,200 km. Each satellite is equipped with phased array antennas and ion thrusters for precise maneuvering and station keeping.

• Ground Stations or Gateway terminals : These are terrestrial stations that connect the Starlink satellites to the internet backbone. They serve as relay points, converting the satellite signals into internet data that can be routed through terrestrial networks.

• User Terminals : These are the end-user equipment that connects to the Starlink satellites. User terminals are also known as "Starlink dishes". The user terminals are equipped with phased array antennas capable of electronically steering the beam to maintain a connection with the moving satellites.

The user terminals and ground stations communicate with satellite constellation using Ka, Ku and V frequency bands. Moreover it uses SC-TDM in the Uplink (Ground Stations to Satellite) and SC-FDMA in the Downlink (Satellite to Ground Stations). The same have been shown in the figure.

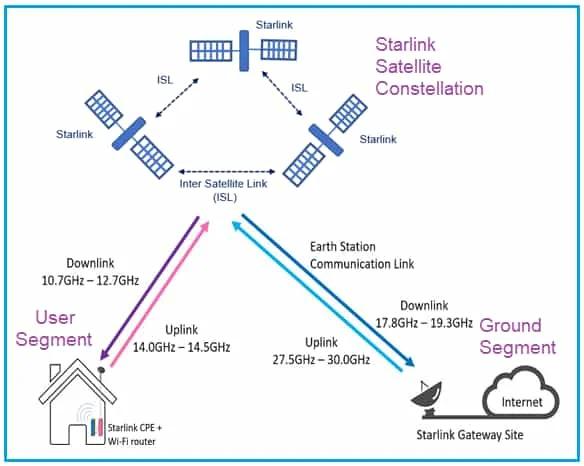

Starlink Network Architecture

• Inter-Satellite Links (ISLs): Starlink satellites use laser communication systems to establish direct links with other satellites in the constellation. These ISLs enable data to be transmitted across the network without needing to relay through ground stations, enhancing network efficiency and reducing latency. This is also known as "Space Routing".

• Network Operations Center (NOC): The NOC is responsible for the overall management, monitoring and control of the Starlink constellation. It ensures that the satellites are functioning correctly, manages satellite orbits and coordinates data routing across the network. The NOC also manages the routing of data between satellites, ground stations and user terminals, optimizing the network performance and ensuring seamless connectivity.

• Software and Algorithms: Advanced algorithms are used to manage network traffic, prioritize data packets and ensure efficient use of available bandwidth. This includes handling handovers between satellites as they move relative to the user's location. AI and machine learning algorithms are employed to dynamically allocate network resources, optimize satellite coverage and predict potential issues.

Benefits of Starlink Architecture

Following are the benefits or advantages of Starlink Architecture.
1. It offers global coverage including remote and underserved regions.
2. It offers low latency due to use of LEO satellites compare to traditional GEO satellites.
3. It offers incremental scaling and continuous improvement.
4. It is aimed to provide high speed internet comparable to or better than many terrestrial broadband services.

Challenges of Starlink System

Following are the challenges of Starlink System implementation and management.
1. Managing the risk of collisions and contributing to space debris.
2. Navigating international regulations and securing spectrum rights.
3. High initial deployment costs and ongoing maintenance.

Conclusion :

The SpaceX Starlink network architecture is a sophisticated blend of satellite technology, ground infrastructure and advanced software systems. The system is designed to provide high speed, low latency internet service to the users around the globe, addressing the digital divide and enhancing global connectivity.
