The traditional utility infrastructure is undergoing a massive digital transformation, evolving from a one way street of resource delivery into a dynamic, interconnected ecosystem known as the smart grid. A smart grid is an intelligent distribution network that leverages advanced digital technologies, sensors and two way communication to monitor and optimize the flow of essential resources such as electricity, water and natural gas from generation sources to end users.
In this comprehensive tutorial, we will break down the foundational architecture that makes these networks function, explore the cutting edge technologies (like IoT and advanced metering) driving them, and highlight the key companies leading the charge in modernizing our global utility infrastructure.
What is a Smart Grid?

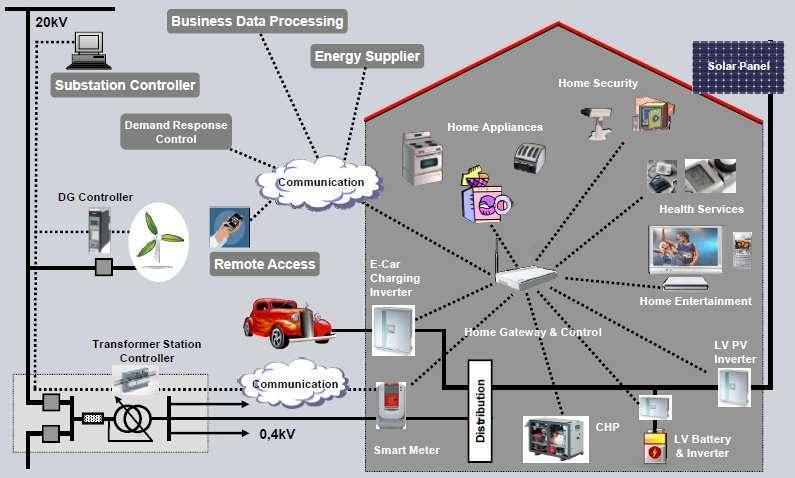

A smart grid is an intelligent utility network that utilizes digital and other advanced technologies to manage and monitor the distribution of essential resources such as electricity, water, or natural gas from sources to destinations. “Sources” refers to production or supply facilities (e.g. power plants, reservoirs or gas hubs) while “destinations” refers to the end-users.
The primary goal of a smart grid is to coordinate different parts of the infrastructure as efficiently as possible, seamlessly connecting system operators, end-users, utility stakeholders, and automated devices.
Smart Grid Operations
The hierarchy of operations performed by smart grid are as follows:
- Integrated Utility Business Operation: Encompasses asset management, data warehousing, and other essential business functions.
- Added Value Network Management & Optimization: Includes applications and systems for network planning, meter data management, network information, and advanced applications such as EMS (Energy Management System), DMS (Distribution Management System), EBM (Energy Business Management), and trading platforms.
- Network Control and Supervision: Involves single or multi-utility control systems, such as SCADA (Supervisory Control and Data Acquisition).
- Communication: Private and public communication networks that enable data exchange and control.
- Field Data Acquisition, Local Control, and Automation: Includes RTUs (Remote Terminal Units), meters, protection devices, and other field equipment.
Smart Grid Architecture

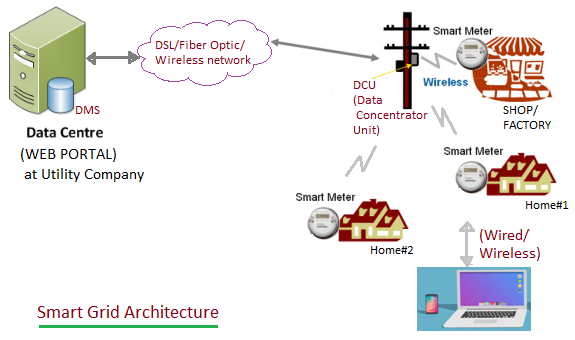

As shown in the diagram, the smart grid architecture is a hierarchical system designed to facilitate two way communication and data flow between utility providers and consumers. At the edge of the network are Smart Meters installed at residential homes, shops, and factories. These devices constantly record energy consumption data and transmit it locally typically via wireless signals to a neighborhood aggregator known as a Data Concentrator Unit (DCU), often mounted on utility poles. The DCU serves as a crucial intermediary, collecting and bundling data from multiple local smart meters to optimize transmission.
Once aggregated, the DCU sends this bundled information across broader, high speed communication infrastructure, depicted as a DSL, Fiber Optic, or Wide Area Wireless network. This network acts as the bridge delivering data to the utility company’s central Data Centre. Within this hub, a Data Management System (DMS) securely processes and stores the information.
Finally, this ecosystem is made interactive through a Web Portal, allowing the utility company to monitor overall grid health, while enabling individual consumers to track their specific energy usage using personal devices (like laptops or smartphones) connected via local wired or wireless networks.
Smart Grid Technologies
The following table outlines various key technologies employed in smart grids:
| Technology | Hardware | Systems/Software |
|---|---|---|
| Wide Area Monitoring and control | Phasor measurement units, sensor equipments | SCADA, WAMS(Wide Area Monitoring Systems), WAAPCA(Wide Area Adaptive Protection Control and Automation), WASA(Wide Area Situational Awareness) |
| Information and communication technology integration | Communication equipments such as wimax, lte; routers, relays, gateways, switches | ERP ( enterprise resource planning software) , CIS (Customer Information System) |
| Renewed and distributed generation integration | Power conditioning equipment for grid and for bulk power | EMS(Energy Management System), DMS(Distributed Management System) |
| Transmission enhancement | Superconductors, HVDC, FACTS | Network stability analysis, automatic recovery systems |
| distribution grid management | Automated re-closers, switches, capacitors, remote controlled distributed generation, wire and cable sensors, transformer sensors | GIS (Geographic Information System) , DMS, OMS (Outage Management System), WMS (Workforce Management System) |
| advanced metering infrastructure | Smart meter, relays, servers, in-home displays | MDMS (Meter data management system) |
| electric vehicle charging infrastructure | Charging infrastructure, batteries, inverters | Energy billing, smart grid to vehicle charging (G2V), discharging vehicle to grid (G2V) methodologies |
| customer side systems | Smart appliances, routers, smart thermostat, thermal accumulators, energy dashboards, energy applications for smart phones and tablets, energy management systems |
Smart Grid Companies and Technology Providers in the USA
| Company Name | Smart Grid Focus | Key Technologies / Solutions |
|---|---|---|
| ABB | Grid automation, digital distribution and intelligent power infrastructure | Distribution automation, SCADA, protection and control, smart substations, grid monitoring, asset management, communications and fault management technologies |
| Cisco | Utility networking, grid communications, IoT and cybersecurity | Industrial networking, IoT connectivity, secure communications, network management and cybersecurity |
| IBM | AI, analytics, software and digital transformation for utilities | Artificial intelligence, data analytics, cloud technologies, asset management and utility software |
| Itron | Smart metering, AMI, distributed intelligence and grid edge management | Smart meters, IoT networks, distributed intelligence, grid edge analytics, DER management and utility software |
| Siemens | Digital grid management, grid automation and power system software | Grid software, digital twins, distribution management, transmission management, microgrid technologies and grid analytics |
| S&C Electric Company | Distribution automation, self healing grids and grid resilience | Intelligent switching, reclosers, fault isolation, FLISR, distribution automation, grid edge monitoring and grid control software |
| Schneider Electric | Digital grid modernization and intelligent distribution | EcoStruxure Grid, ADMS, DERMS, grid operations software, GIS, asset management and energy-data platforms |
| Opower - Oracle Utilities | Utility customer engagement, energy analytics and demand flexibility | Opower cloud platform, energy-use analytics, personalized energy insights, high bill alerts, demand-response and DER customer engagement |
| Silver Spring Networks - now part of Itron | Smart grid communications and IoT networking | Smart grid communication networks, AMI connectivity, network management, grid analytics and IoT infrastructure |
| Tendril - now part of Uplight | Customer energy engagement, analytics and demand management | Energy analytics, personalized energy experiences, demand side management and home energy management |
Smart Grid Companies in India
| Company Name | Smart Grid Focus | Key Technologies / Solutions |
|---|---|---|
| Capgemini | Digital transformation and modernization of electricity grids | Smart grid implementation, IT/OT integration, cloud, IoT, AI, data analytics, cybersecurity, grid modernization and distributed energy resource management. Capgemini’s India practice specifically addresses smart transmission and distribution challenges. |
| HCLTech (formerly HCL Infosystems) | Digital engineering and IT services for energy and utilities | Cloud platforms, data analytics, IoT, AI, automation, cybersecurity and digital transformation services that can support utility and grid modernization programs. |
| Tata Power Delhi Distribution Ltd. (TPDDL) (formerly New Delhi Power Ltd.) | Smart electricity distribution and distribution automation | Smart meters, AMI, SCADA, distribution automation, outage management, GIS, network monitoring, demand-side management and renewable energy integration. |
| GE Vernova (formerly GE) | Grid software, grid automation and power system modernization | Grid orchestration software, ADMS, DER management, asset performance management, digital substations, grid analytics and automation. GE Digital and Infosys have also collaborated on grid-transformation solutions. |
| Power Grid Corporation of India (POWERGRID) | Smart transmission networks and intelligent high voltage grid infrastructure | Digital substations, wide area measurement systems, synchrophasors, SCADA/EMS, telecommunications, grid automation and transmission system monitoring. |
| Schneider Electric (Telvent) | Energy management, grid automation and utility software | ADMS, DERMS, SCADA, GIS, distribution automation, grid planning, energy management and digital grid platforms. Telvent’s former utility software activities are now associated with Schneider Electric’s broader digital energy portfolio. |
| Larsen & Toubro (L&T) | Smart distribution infrastructure, metering and grid automation | Smart meters, AMI, SCADA, distribution automation, substation automation, power quality monitoring, communication infrastructure and utility EPC solutions. |
| Echelon Corporation | Smart metering and intelligent energy-control networks | Utility communications, smart meter networking, RF/PLC communications, energy control devices and network management technologies. Echelon is now part of Adesto Technologies, which was subsequently acquired by Dialog Semiconductor/Renesas. |
| Infosys | Digital grid modernization and intelligent utility operations | AI, machine learning, IoT, cloud, grid analytics, next-generation SCADA, distribution operations management, DER integration, EV integration, load forecasting and cybersecurity. |
| Accenture | Digital transformation of utilities and intelligent grid operations | AI, cloud, IoT, data analytics, grid optimization, DER management, asset management, customer platforms, cybersecurity and utility digital transformation. |
| Siemens eMeter (now Siemens Grid Software) | Advanced metering and utility data management | AMI, smart meter data management, meter to cash integration, energy analytics, distributed intelligence and utility software. |
| Ecolibrium Energy | Energy intelligence and industrial energy management | IoT based energy monitoring, real time energy analytics, smart metering, power quality monitoring, demand management and energy optimization. |
| DNV (formerly KEMA) | Power system consulting, testing, certification and grid modernization | Grid studies, renewable energy integration, grid planning, power system analysis, asset management, cybersecurity, testing and technical advisory services. |
| Tridium | Intelligent edge control and interoperability for connected energy systems | Niagara Framework, IoT gateways, device integration, edge analytics, building energy management and interoperability between different automation and control systems. |
| Tech Mahindra (formerly Mahindra Satyam) | IT and digital services for energy and utility transformation | Cloud, AI, analytics, IoT, automation, cybersecurity, enterprise applications and digital engineering for utility operations. Mahindra Satyam merged with Tech Mahindra in 2013. |
| Landis+Gyr | Advanced metering infrastructure and grid edge intelligence | Smart electricity meters, AMI networks, meter data management, grid edge sensing, distribution intelligence, demand response and DER related solutions. |
| Grid Controller of India Ltd. (GRID-INDIA) (formerly POSOCO) | National and regional power-system operation | National/Regional Load Despatch Centres, grid monitoring, energy management systems, power system operation, renewable energy integration and electricity market coordination. POSOCO officially changed its name to Grid Controller of India Ltd. in 2022. |
| Kalkitech | Smart grid communication, utility automation and energy management | Smart metering solutions, utility protocols, substation automation, SCADA, IEC 61850, DLMS/COSEM, meter data systems and grid communication technologies. |
| CyanConnode (formerly Cyan Holding) | Narrowband RF mesh communications for smart metering | RF mesh networks, IoT communication modules, AMI, smart meter connectivity, network management and secure utility communications. CyanConnode currently operates an India subsidiary and has multiple smart-meter deployments in India. |
Summary
The transition to smart grids represents a critical leap forward in how we manage and consume essential resources. Empowered by modern technologies such as IoT, big data analytics, and two way communication protocols, smart grids deliver unprecedented efficiency, reliability and consumer control. With industry leading companies continually innovating in this space, the smart grid ecosystem is rapidly becoming the indispensable backbone of future smart cities, paving the way for a more sustainable and optimized world.
