What is TT&C in Satellite Systems: Advantages and Disadvantages

Telemetry, Tracking, and Command (TT&C) is a satellite communication subsystem responsible for monitoring satellite health, tracking orbital position, and transmitting operational commands. Its advantages include reliable satellite control, continuous performance monitoring, and mission safety, while its disadvantages include system complexity, communication delays, and high implementation and operational costs.

What is satellite TT&C?

It enables communication between a satellite or spacecraft and ground station for the purposes of monitoring, controlling and locating spacecraft throughout its mission. Let us understand its components.

• Telemetry : The purpose is to send data from satellite to the ground station. The information relayed by the satellite include health status, sensors data, battery levels, temperature, payload status etc. The information is sent in frames or packets using CCSDS or similar protocols.

• Tracking : It determines precise location, speed and trajectory of the satellite. The techniques used include doppler shift measurement, ranging, angle of arrival etc.

• Command : It sends instructions from ground station to the satellite. It is mainly used to change orientation of the satellite by controlling its altitude. Moreover commands are used for activation/deactivation of payload and to perform software upgrades etc. It requires secure and authenticated links.

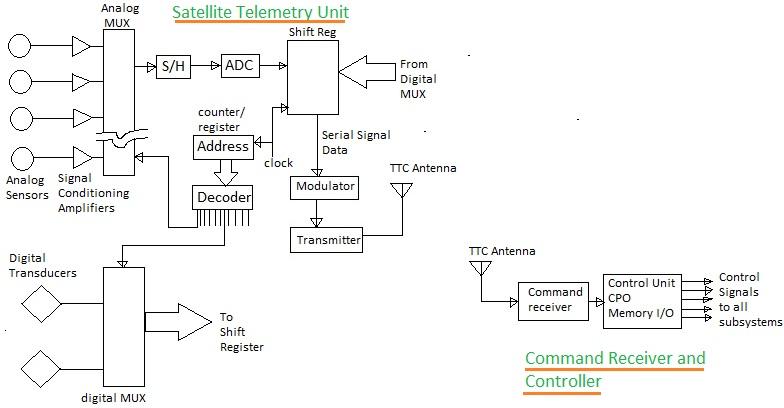

The figure depicts satellite side and ground station side components of the satellite TT&C system. Following are the different bands used for TT&C system.

• UHF band (i.e. 300 MHz to 3 GHz) is used for small satellites
• S-band (2 to 4 GHz) is Widely used for TT&C
• X-band (8 to 12 GHz) is used for higher resolution tracking/data
• Ka-band (26 to 40 GHz) is used for newer missions with more bandwidth

Benefits or Advantages of satellite TT&C

1. Enables real time control and health monitoring of satellites

2. Ensures safety of spacecraft systems

3. Helps with collision avoidance and orbital correction

4. Allows remote diagnosis and troubleshooting

Limitations or Disadvantages of satellite TT&C

1. Signal delay in deep space missions

2. Interference or signal loss

3. Security threats such as jamming, spoofing, unauthorized access

4. Requires high precision synchronization and encryption

Summary

TT&C (Telemetry, Tracking, and Command) systems are indispensable for successful satellite missions by ensuring continuous spacecraft monitoring, command execution, and precise orbital management throughout mission life. Their operational advantages improve mission reliability and spacecraft safety, although communication infrastructure, redundancy requirements, and operational expenses contribute to overall system complexity.
