RZ, NRZ, CRZ, and CSRZ Line Encoding: A Comparison

line encoding rz nrz optical communication signal processing

In digital communication systems, line encoding schemes are crucial for representing binary data efficiently and reliably. RZ (Return-to-Zero), NRZ (Non-Return-to-Zero), CRZ (Chirped Return-to-Zero), and CSRZ (Carrier-Suppressed Return-to-Zero) are distinct line coding methods, each with its own characteristics, advantages, and disadvantages. Let’s delve into a detailed comparison.

RZ (Return-to-Zero)

  • Signal Characteristics: In RZ encoding, each bit includes a transition back to the zero (baseline) level within its bit period.

  • Waveform: A ‘1’ is represented by a pulse that returns to zero before the bit period ends, while a ‘0’ is represented by the absence of a pulse.

  • Advantages: The guaranteed transitions within each bit period make synchronization easier.

  • Disadvantages: The return-to-zero behavior introduces higher frequency components, thus requiring more bandwidth.

  • Applications: Commonly used in optical fiber communication and systems where precise synchronization is essential.

NRZ (Non-Return-to-Zero)

  • Signal Characteristics: The signal maintains a constant level for the entire bit period, without returning to zero in between.

  • Waveform: A ‘1’ can be represented by a high level and a ‘0’ by a low level (NRZ-L), or vice versa. Alternatively, transitions can indicate bits (NRZ-I).

  • Advantages: Offers efficient bandwidth utilization due to the absence of unnecessary transitions within a bit period.

  • Disadvantages: Long sequences of identical bits (e.g., consecutive ‘0’s or ‘1’s) can lead to synchronization problems.

  • Applications: Widely implemented in computer networks, such as Ethernet.

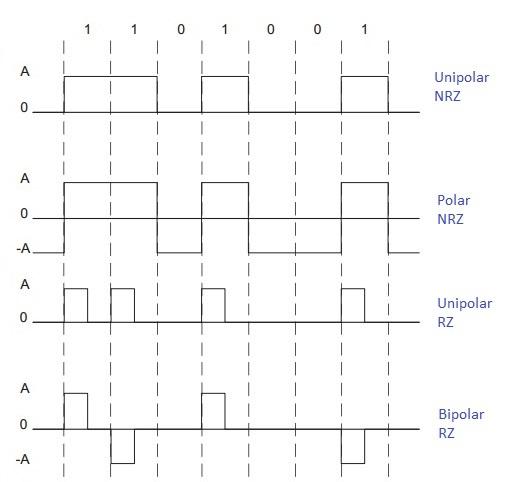

RZ vs NRZ vs manchester code

The figure depicts RZ and NRZ line encoding waveforms.

CRZ (Chirped Return-to-Zero)

  • Signal Characteristics: CRZ modulation involves applying a frequency chirp to the return-to-zero pulses, meaning the frequency of the pulse changes over time.

  • Waveform: Pulses that return to zero with a frequency chirp, resulting in a broader spectrum compared to standard RZ.

  • Advantages: Exhibits better resistance to dispersion and non-linear effects in optical fibers, improving performance over long distances.

  • Disadvantages: Requires more complex signal processing due to the chirping.

  • Applications: Used in advanced optical communication systems where dispersion management is critical.

CSRZ (Carrier-Suppressed Return-to-Zero)

  • Signal Characteristics: CSRZ is a variation of RZ where the phase of the carrier is alternated between adjacent bits, suppressing the carrier and improving performance.

  • Waveform: The signal returns to zero with phase alternation, resulting in a distinctive pattern.

  • Advantages: Offers better spectral efficiency, reduced nonlinear effects in optical fibers, and improved resistance to dispersion.

  • Disadvantages: Requires complex modulation and demodulation techniques.

  • Applications: Implemented in high-speed optical communication systems where bandwidth and performance are critical.
