What is CAP modulation : Carrierless Amplitude Phase Modulation

CAP (Carrierless Amplitude Phase) modulation is a digital modulation technique that transmits data without requiring an explicit carrier signal. It combines amplitude and phase information to achieve efficient bandwidth utilization. Advantages include simplified implementation and high spectral efficiency, while disadvantages include sensitivity to channel distortions and synchronization challenges.

Introduction to CAP Modulation

CAP modulation is primarily used in xDSL transmissions where the carrier frequency is suppressed at the Central Office (CO). Carrierless Amplitude Phase (CAP) modulation is a bandwidth efficient digital modulation technique primarily used in high speed data transmission systems like ADSL.

CAP is essentially a variation of Quadrature Amplitude Modulation (QAM). The key difference is that CAP suppresses the carrier frequency, requiring it to be regenerated at the DSL device to decode the modulated signal. Unlike QAM, which uses the amplitude of two carrier frequency waves, CAP generates a QAM modulated signal by combining two filtered PAM (Pulse Amplitude Modulation) signals. These signals have an impulse response that forms a “Hilbert pair.”

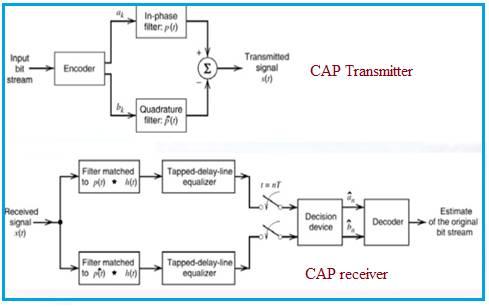

The primary distinction between QAM and CAP is that in CAP, the phase of the carrier is reset at the beginning of each symbol. The figure above illustrates the transmitter and receiver modules in a CAP system.

Advantages of CAP Modulation

1. Lower Latency: CAP offers better latency characteristics, meaning it doesn’t significantly delay bit throughput.
2. Suitable for Single-Carrier Designs: Vendors implementing non-DMT (Discrete Multi-Tone) designs in their xDSL products often use CAP modulation.
3. Simpler Implementation: Compared to QAM modulation at the same carrier frequency and symbol rates, CAP is simpler to implement.
4. Historical Use: CAP has been used in various applications such as HDSL and ADSL (up to 1996).

Disadvantages of CAP Modulation

1. More Complex Electronics at User End: CAP requires more electronic circuits at the end-user’s premises.
2. Poor Noise Adaptation: It doesn’t adapt well to noisy conditions.
3. Obsolete in Modern Standards: CAP is not used in modern standards like ADSL2, VDSL2, and G.Fast, which utilize DMT modulation.

Summary

By combining amplitude and phase variations without the need for a carrier signal, CAP simplifies transceiver design while maintaining robust performance over twisted pair lines. Although it has largely been replaced by more advanced schemes like DMT in modern systems, CAP modulation remains an important milestone in the evolution of broadband communication technologies.
