HBT Injection Efficiency Calculator & Formula

Injection efficiency is a crucial parameter in HBT performance, affecting current gain and overall device efficiency. Accurate calculation helps optimize transistor operation in RF circuits. This page provides HBT calculator and its injection efficiency formula used to evaluate its performance in practical applications. The HBT injection efficiency calculator provides an effective way to evaluate carrier injection performance in heterojunction bipolar transistors.

EXAMPLE:

INPUTS:

• Electron Injection Current from emitter to base (InE) = 9.5 mA
• Hole Injection Current from base to emitter (Suppressed by heterojunction), IpE = 0.05 mA

OUTPUTS:

• Injection Efficiency = 0.995

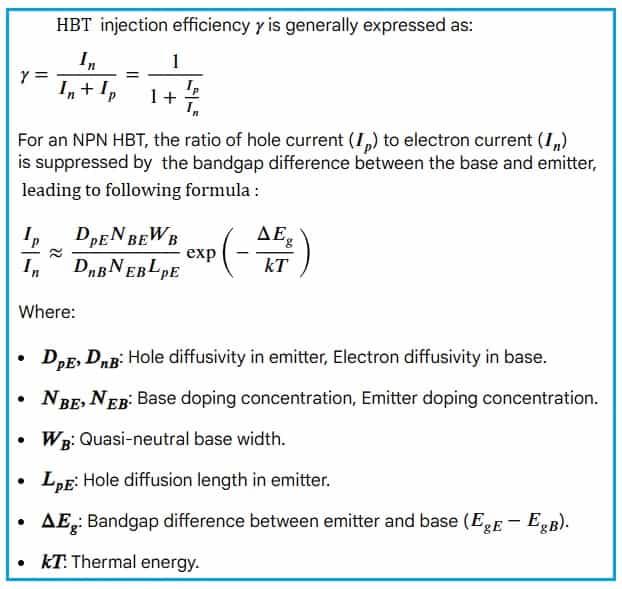

HBT Efficiency Formula

Summary: By using standard transistor physics formulas, this tool helps determine how efficiently charge carriers contribute to current gain and device performance. It is highly useful for RF and microwave circuit designers who need to analyze transistor efficiency, optimize gain and improve high frequency device operation.

References for further study

1. Semiconductor Lasers (for heterojunction theory) By G. P. Agrawal & N. K. Dutta
2. Physics of Semiconductor Devices By S. M. Sze & Kwok Ng; Detailed heterojunction transistor physics and carrier transport.
