Fiber Star Coupler Calculator | Output Power Formula

This page covers Fiber Star Coupler Calculator. The output power is calculated by this fiber Star Coupler Calculator.

Power input (mW) (input1) :

N in NxN (input2) :

Excess Loss of coupler (input3) :


Power Output in dBm (Output1):

Power Output in mWatt (Output2):


Example of Fiber Star Coupler Calculator:
INPUTS :
Pin = 3 dBm, N = 10, Lossex = 2dB
OUTPUTS:
Pout = -9 dBm, Pout = 0.12589 mWatt or 126 µWatt


Fiber Star Coupler Calculator Formula

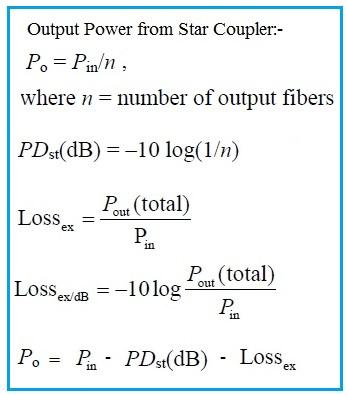

Following equation or formula is used for Fiber Star Coupler Calculator.


fiber star coupler equation or formula
