Tunnel Diode Calculator

This page of converters and calculators section covers Tunnel diode calculator. The calculator calculates resistive frequency and self resonant frequency.

Absolute negative resistance in Ohms (input1):

Junction capacitance in PF(input2):

Series resistance in Ohms(input3):

Series inductance in nHenrys(input4):


resistive frequency in MHz (Output1):

self resonant frequency in MHz(Output2):

EXAMPLE:
INPUTS : R=25,Cj=21PF,Rs=1.25,L=10nH
OUTPUTS: Fr=1321.4MHz, Fs = 169.5 MHz


Tunnel Diode Equation

Following equation or formula is used for Tunnel diode calculator.

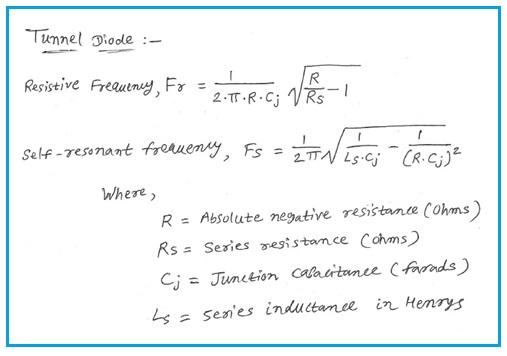

Tunnel diode calculator equation
