Top RF Filter Manufacturers and Companies for Radio Frequency Filtering
RF filters play a crucial role in wireless communication systems, ensuring optimal signal quality by selectively passing desired frequencies while attenuating unwanted signals. With the rapid growth of modern communication technologies such as 5G, Wi-Fi 6E, and IoT devices, the demand for high-performance RF filters has surged. Numerous manufacturers and companies are at the forefront of producing these critical components, catering to a variety of industries, from telecommunications and broadcasting to aerospace and defense. This page covers comprehensive overview of some of the leading RF filter manufacturers, highlighting their contributions and innovations in the field.
What is an RF or Microwave Filter?
An RF (Radio Frequency) or microwave filter is a specialized electronic component designed to selectively pass or reject certain frequency ranges. These filters are critical in communication systems for isolating signals, minimizing interference, and optimizing the performance of wireless devices by ensuring only the desired frequencies are transmitted or received.
RF Filter Types
There are several common types of RF and microwave filters, each serving a specific purpose in signal processing :
1. Low-Pass Filter (LPF)
Function: Allows signals below a specific cutoff frequency to pass while attenuating signals above it.
Application: Used to block high-frequency noise or harmonics in communication systems.
2. High-Pass Filter (HPF)
Function: Passes signals above a certain cutoff frequency and attenuates signals below that frequency.
Application: Removes low-frequency interference or unwanted signals.
3. Band-Pass Filter (BPF)
Function: Passes signals within a specific frequency range (the passband) and attenuates frequencies outside this range.
Application: Commonly used in wireless communication to isolate and transmit specific channels or frequencies.
4. Band-Stop Filter (Notch Filter)
Function: Blocks signals within a specified frequency range and allows frequencies outside this range to pass.
Application: Used to eliminate narrowband interference, such as unwanted frequencies or noise.
5. All-Pass Filter
Function: Passes all frequencies but adjusts the phase relationship between signals at different frequencies.
Application: Used in phase correction or delay circuits.
6. Cavity Filter
Function: A high-performance filter that uses resonant cavities to achieve sharp frequency selectivity.
Application: Used in applications requiring high power handling and minimal insertion loss, such as radar and military communication.

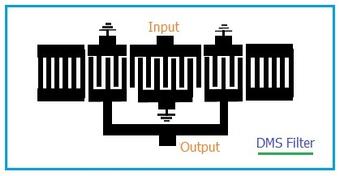

7. SAW (Surface Acoustic Wave) Filter
Function: Employs acoustic waves on a piezoelectric substrate to filter signals.
Application: Used in mobile phones and GPS systems due to its compact size and ability to operate at high frequencies.

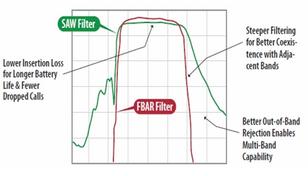

8. BAW (Bulk Acoustic Wave) Filter
Function: Similar to SAW filters but operates through bulk acoustic waves, offering better performance at higher frequencies.
Application: Widely used in 5G, Wi-Fi 6E, and other high-frequency applications.
There are other types of RF filters based on their design which include ceramic filter, cavity filter, waveguide filter,lumped element filter, interdigital filter, coaxial filter, dielectric filter etc.
Technical Specifications for Selecting RF/Microwave Filters
When selecting an RF or microwave filter for a specific application, the following technical
specifications must be carefully considered.
• Cutoff Frequency / Passband Frequency : It is defined as the range of frequencies the filter will allow or block. It must align with the system's required operating frequency range.
• Insertion Loss : It is defined as the amount of signal power lost due to the filter's presence in the signal path. Lower insertion loss is critical for ensuring
maximum signal power and efficiency, particularly in long-range communications.
• Bandwidth : It is defined as The frequency range over which the filter operates effectively (i.e., within the passband for a band-pass filter).
The bandwidth must match the application’s requirements for signal selectivity and interference rejection.
• Return Loss (Reflection Loss) : It is defined as the loss of signal power reflected back from the filter, rather than being transmitted through it.
A higher return loss indicates better impedance matching and minimal signal reflection.
• Rejection : It is defined as the ability of a filter to attenuate unwanted frequencies outside its passband.
High rejection is necessary for eliminating out-of-band noise and interference, improving signal quality.
• Group Delay : It is defined as the time delay experienced by different frequency components as they pass through the filter.
Minimal group delay is important for applications that require precise timing, such as radar and high-speed data communications.
• Power Handling : It is defined as the maximum signal power that the filter can handle without degrading performance or damaging the filter.
High power handling is essential in applications such as base stations, radar, and satellite communications.
• Size and Weight : For applications like mobile devices and drones, compact and lightweight filters are preferred. Conversely,
larger, high-power filters may be suitable for infrastructure applications like base stations.
• Operating Temperature Range : Filters in harsh environments, such as outdoor or military applications, must operate reliably within specific temperature ranges.
• Impedance Matching : The input and output impedance of the filter must match the system's impedance (usually 50 or 75 ohms) to minimize signal reflection and maximize power transfer.
Manufacturers of RF Filters
Popular RF filter manufacturers are listed below.
Manufacturers | RF Antenna with Features |
---|---|
Qorvo | The company is a leading provider of innovative RF solutions, including high-performance microwave filters. Their products cater to industries such as wireless infrastructure, defense, and satellite communications. |
Murata Manufacturing | Murata is a global leader in electronic components and solutions, known for producing high-quality RF and microwave filters. Their filters are widely used in mobile devices, automotive electronics, and IoT applications. |
Skyworks Solutions | It is a major player in the RF semiconductor industry, providing advanced microwave filters for wireless communications. Their products are integral to smartphones, Wi-Fi routers, and IoT devices. |
TriQuint Semiconductor (merged with Qorvo) | TriQuint, now part of Qorvo, is renowned for its expertise in RF and microwave filters, particularly in defense and aerospace applications, offering high-frequency solutions that meet stringent performance standards. |
K & L Microwave | Filter of various types Bandpass,low pass,high pass and notch filter. Website : www.klmicrowave.com |
RS Microwave Company Inc. NJ, USA | From 1 MHz frequency to 50 GHz frequency filter of various types
such as high pass, low pass, waveguide, notch filter are available. Website : www.rsmicro.com |
Anatech Electronics, Inc. | Rf and microwave filter from 10 kHz to 40 GHz of types bandpass, highpass, lowpass, bandstop. Website : www.anatechelectronics.com |
LORCH Microwave, part of Smiths Interconnect | Tunable filter from 24 MHz to 3 GHz. Website : www.lorch.com |
Eastern Wireless TeleComm, Inc. Salisbury, MD | Filter of various types e.g. Cavity filter(frequency till 50GHz) , Lumped element filter(frequency till 10 GHz), waveguide filter (frequency till 50 GHz) and integrated filter assemblies with switch or LNA. Website : ewtfilters.com |
Networks International Corporation | Manufacturer of custom RF & Microwave Filter
Cavity filter from 3 GHz to 12 GHz.
ceramic filter from 400 MHz to 6 GHz.
crystal filter up to frequency of 250 MHz.
Miniature LC filters-Bandpass,lowpass and Highpass. Website : www.nickc.com |
REACTEL,INCORPORATED | Discrete component filter, ceramic filter,cavity filter, interdigital
filter ,waveguide filter and suspended substrate rf filters. Website : www.reactel.com |
Active Spectrum, INC. | Available both Tunable filter and fixed frequency RF filter from 225 MHz to 6 GHz bands. Website : www.asimicrowave.com |
FILTRONETICS Inc. Kansas City, MO | RF Filters upto 1 GHz of various types ceramic,crystal,saw,tunable,LC and monolithic one. Website : www.filtro.net |
rfmicrotech | Dielectric filter,coaxial filter and more. Website : www.rfmicrotech.com |
Conclusion
As wireless communication continues to evolve, RF filters remain indispensable in maintaining efficient and reliable signal transmission across diverse applications. The manufacturers mentioned in this article have played a pivotal role in advancing RF filter technology, ensuring that communication systems operate seamlessly. Whether it's for 5G networks, IoT devices, or advanced aerospace applications, the expertise and innovations from these companies are driving the future of RF communication.
