Waveguide Filters: Design and Applications
Waveguide filters are crucial in RF systems, enabling the elimination of unwanted frequencies for better signal clarity. This guide explores their designs, types, and key applications in various industries.

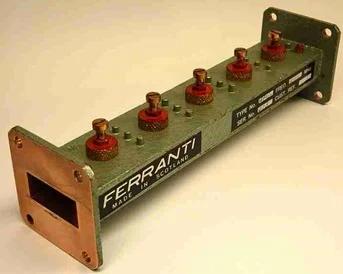

The device which is used to pass and to stop certain frequencies in the hollow metal pipes known as waveguide is called waveguide filter. It is designed to be interfaced with waveguide based systems. The figure depicts waveguide filter with various screw posts required for tuning to obtain the best performance as needed.
Following parameters should be considered before selecting waveguide filter:
• Frequency Range
• Bandwidth
• Number of Sections
• VSWR
• Power Handling
• Dimension as per waveguide size
• Configuration: single components or diplexed
• Interface:Waveguide flange or connectorized type

Types of Waveguide Filters
Waveguide filters are used to selectively allow specific frequency ranges to pass while attenuating others.
They are widely used in RF, microwave, and millimeter-wave systems. The primary types of waveguide
filters include following.
1. Low Pass Filters : Allow frequencies below a cutoff frequency to pass and attenuate higher frequencies.
2. High Pass Filters : Pass frequencies above a certain cutoff and reject lower frequencies.
3. Band Pass Filters : Allow a specific range of frequencies to pass while rejecting frequencies outside this range.
4. Band Stop Filters (Notch Filters) : Reject a specific range of frequencies while allowing others to pass.
5. Cavity Filters : Use resonant cavities within the waveguide to create selective filtering.
6. Iris Coupled Filters : Employ irises (metallic or dielectric barriers) to control coupling between waveguide sections.
7. Dielectric Filters : Incorporate dielectric materials within the waveguide to achieve desired filtering characteristics.
8. Evanescent Mode Filters : Use evanescent (non-propagating) wave modes to achieve filtering in oversized waveguides.
Applications
Waveguide filters are essential components in RF and microwave systems, offering precise frequency control for various applications. They are widely used in radar systems for harmonic suppression, communication systems for signal conditioning and frequency selection, and satellite payloads for compact, high power filtering. Band stop filters suppress interference and spurious signals, while band pass filters enable the isolation of desired frequency ranges. Low pass and high pass filters eliminate unwanted harmonics or low frequency noise, and cavity filters provide high-Q performance in high-power scenarios. Iris coupled and dielectric filters are ideal for tunable and compact applications, supporting advanced communication and sensing technologies.
Manufacturers
www.lorch.com
micro.apitech.com/waveguide.aspx
www.ets-lindgren.com/pdf/WaveGuideFilter.pdf
teledynekwmicrowave.com/KW/Products/Filters/Waveguide.aspx
Conclusion
Waveguide filters are integral to efficient RF and microwave systems, ensuring signal integrity. Understanding their operation helps in achieving superior performance.
