RF Mixer: Function, Equation, Types & Applications
An RF mixer is a vital component in communication systems, enabling frequency conversion and signal modulation. It operates based on the principle of mixing two signals to produce new frequencies. In this guide, we explain the functions of an RF mixer, its key equations, types and applications across various industries.
A radio-frequency (RF) mixer is an essential component in microwave and RF circuits, particularly in communication systems, radar, and other wireless applications. Its primary function is to combine two or more input signals at different frequencies and produce an output signal that contains the sum and difference frequencies of the inputs. This process is known as frequency mixing.
The primary function of an RF mixer can be summarized as follows:
➨Frequency Conversion: The mixer is used to convert input signals from one frequency to another.
This is crucial in various applications, such as frequency translation in communication systems.
➨Signal Processing: The mixer can be employed for modulation and demodulation of signals,
allowing the transmission and reception of information in a more manageable frequency range.
RF Mixer Technical Specifications
Following specifications need to be considered while purchasing rf mixer
Frequency ranges : the RF, LO, and IF ranges for which the mixer is designed.
Dynamic range: Input power range over which mixer is useful.
LO power level : the design or maximum LO power.
Conversion loss: the ratio of IF to RF power.
1-dB input compression level : the RF power at which the conversion loss increases by 1 dB.
IM intercept points: usually the IIP3.
Isolation: between the various ports, LO, RF, and IF; for example, how much is the LO power attenuated in getting to the IF/RF ports.
VSWR: at all the three ports RF,IF and LO.
RF Mixer Equation and working
RF mixer is defined by following equation:
➨ Fout= |nf1 +/- mf2|
Where,
fout represents all output signals, f1 and f2 are the two input signals, n and m are the
order of the harmonics, from zero (fundamental) to infinity.
Usually in all the mixers, second order products f1+f2 and f1-f2 will have the highest amplitudes
f1+ f2
f1- f2 (actually: |f1- f2|)
2f1 and 2f2 are also second-order outputs.

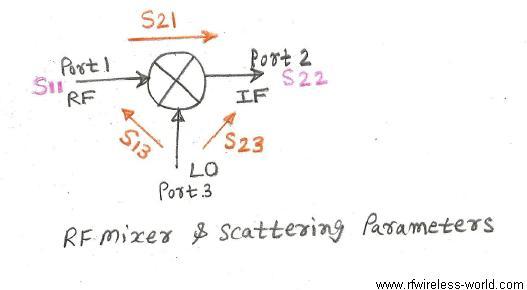

RF mixer is a three-port device. The three ports are usually denoted as radio frequency (RF), intermediate frequency (IF), and local oscillator (LO). The RF and IF ports are bidirectional ports. Since a mixer has three ports, this means that it has nine S-parameters. Typically only five of these are tested in practice as shown in the figure above.
RF Mixer Types
RF mixer usually consists of single diode or multiple diodes or some other electronic device e.g. FET (Field Effect Transistor). There are different types of mixers single ended, balanced(90 degree), balanced(180 degree), double balanced and image reject mixers. Practically mixers are of balanced type, in which even order harmonics will not be produced at the output due to the design.
There are various types of RF mixers, and they can be broadly categorized into three main types:
1. Additive Mixers: Produce the sum of the input frequencies.
2. Subtractive Mixers: Generate the difference frequency between the input signals.
3. Multiplicative Mixers: Produce both the sum and difference frequencies.
Hence one can find sum and difference of input frequences f1 and f2. 2f1 and 2f2 will not be produced.
If there are no other outputs, if components are ideal (lossless) then the mixer circuit behaves as per equation below.
➨cos(w1)cos(w2) = [cos(w1 + w2)]/2 + [cos(w1 - w2)]/2
where cos(w1) and cos(w2) are the time domain representations of f1 and f2 input frequencies.
The 1 by 2 factors indicates input amplitude is divided between two outputs.
1 by 2 factor represents 6 dB conversion loss of the mixer.
RF Mixer Circuit Design
RF mixers with high third order intercept point and higher LO/RF and LO/IF isolation are usually
considered for the RF circuit design. These mixers provide best performance in the mixer based RF systems.
The specific circuit configuration of an RF mixer depends on its type and application.
However, some common mixer circuit configurations include:
• Single-Balance Mixers: Use a single diode or transistor to achieve mixing.
• Double-Balance Mixers: Utilize two diodes or transistors in a balanced configuration to suppress unwanted harmonics and improve performance.
Following thumb rules are useful during RF Mixer circuit design.
1.LO power should be at least 20dB higher than RF Power.
2.1dB compression point is 5 to 10 dB lower than LO Power.
3. Usually pads have been used at all the three ports of RF mixer.
But When matching and intermodulation products are a problem use isolators in the place of pads.
Refer our page on design of RF frequency converter
to know the use of RF mixers in the microstrip based design.
Refer RF mixer circuit designs for Balanced mixers >> and
FET & Image reject mixers >>.
RF Mixer Applications
RF mixers find applications in various fields, including:
• Communication Systems: Used for frequency upconversion and downconversion in transmitters and receivers.
• Radar Systems: Employed for frequency translation and signal processing.
• Test and Measurement Equipment: Utilized in spectrum analyzers and signal generators.
• Satellite Communication Systems: Used for frequency translation in uplink and downlink paths.
• Medical Imaging Systems: Applied in microwave imaging and sensing.
Conclusion
RF mixers are indispensable in modern communication systems, offering efficient frequency management and signal processing capabilities. Understanding their operation and applications enhances the design of RF systems.
