What is UWB technology ?

The term UWB stands for Ultra-Wideband which is a radio technology as defined in IEEE 802.15.4a. The main application of UWB is to measure distance and location by estimating time to travel by radio frequency signals between two devices. It does the distance/location estimation more accurately in the presence of noise and multipath interference compare to wifi/BLE. WiFi and BLE systems calculate distance based on RSSI which is not accurate as signals may pass through walls or get reflected. It has been adopted by leading manufacturers of smartphones and other devices. It is being used in different industries such as healthcare, automotive, factory automation, wireless and so on. UWB operates in unlicensed spectrum similar to other wireless technologies. Due to this, it may become ubiquitous like WiFi and BLE. It seems to be about 50 times faster than GPS and updates upto 1000 times per second. The update rate is faster than BLE beacon.

Following are the benefits of UWB technology:
• It offers ultra accurate distance estimation with centimeter resolution.
• It is ultra reliable as it offers high immunity against multipath and other interference types.
• It offers low latency which is 50 times faster than GPS.
• It is affordable due to low power consumption and lower cost.
• It offers refresh rate of 200 to 1000 times per second.
• It is secure as it uses distance bounding procotol as per IEEE 802.15.4z.

UWB Channels vs UWB Frequencies vs UWB bandwidth

Following table mentions UWB channels and their corresponding UWB center frequency and UWB bandwidth.

UWB Channels UWB Center Frequency UWB Bandwidth Region used
0 399.36 MHz 499.2 MHz USA
1 3494.4 MHz 499.2 MHz USA, Europe
2 3993.6 MHz 499.2 MHz USA, Europe, Japan, Korea
3 4492.8 MHz 499.2 MHz USA, Europe, Japan, Korea
4 3993.6 MHz 1331.2 MHz USA, Europe
5 6489.6 MHz 499.2 MHz USA, Europe, China
6 6988.8 MHz 499.2 MHz USA, Europe, China
7 6489.6 MHz 1081.6 MHz USA
8 7488 MHz 499.2 MHz USA, Europe, Korea, China
9 7987.2 MHz 499.2 MHz USA, Europe, Japan, Korea, China
10 8486.4 MHz 499.2 MHz USA, Europe, Japan, Korea, China
11 7987.2 MHz 1331.2 MHz USA, Japan, Korea
12 8985.6 MHz 499.2 MHz USA, Japan, Korea
13 9484.8 MHz 499.2 MHz USA, Japan, Korea
14 9984 MHz 499.2 MHz USA, Japan, Korea
15 9484.8 MHz 1354.97 MHz USA, Japan, Korea

As mentioned in the table, UWB frequencies are categorized into sub-GHz band (USB channel 0), Low band (UWB channels 1 to 4) and high band (UWB channels 5 to 15). UWB uses unlicensed spectrum and hence anyone can implement communication link using UWB transmitter and UWB receiver without obtaining regulatory license provided system operates within frequency and power limits. FCC has defined frequencies from 3.1 to 10.6 GHz for use in UWB applications. As mentioned UWB spectrum is divided into various UWB channels. All the UWB channels are not used in all the regions.

UWB EIRP versus UWB frequencies

UWB EIRP limits

Following table mentions UWB EIRP limits for various UWB frequencies.

UWB Frequency EIRP
960 to 1610 MHz -75.3 dBm
1610 to 1990 MHz -53.3 dBm
1990 to 3100 MHz -51.3 dBm
3100 to 10600 MHz -41.3 dBm
> 10600 MHz -51.3 dBm

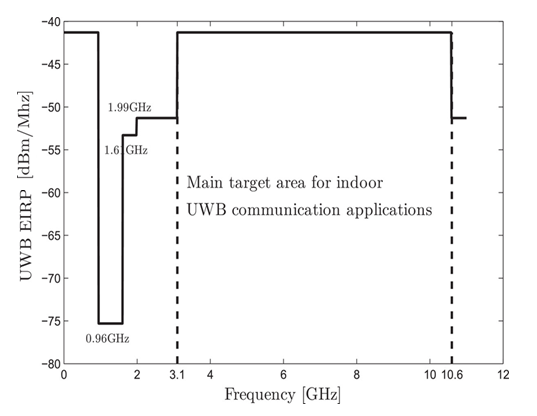

As mentioned in the table, FCC limits maximum radiation power to -41.3 dBm from 3.1 to 10.6 GHz range. The figure shows EIRP limits for frequencies outside this range (3.1-10.6 GHz).

Refer UWB basics >> and UWB Radar System tutorial >>.
