LoRaWAN Frequency bands, data rate, EIRP CHINA (CN region)

This page describes LoRaWAN Frequency bands and channels used in China (CN region). It also mentions data rate and Tx power (i.e. EIRP).

LoRaWAN frequency bands, channels, EIRP and data rate requirements are specific to different parts of the world.

What is LoRaWAN frequency bands used in China ?

Band CN779-787 (range from 779 to 787 MHz) is used in CHINA for LoRaWAN system. Three Channel frequencies used are 779.5 MHz, 779.7 MHz and 779.9 MHz.

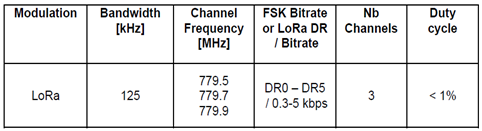

China LoRaWAN frequency channels

The table also mentions LoRa modulation, BW (125 KHz), frequency channels, bit rates and duty cycle.

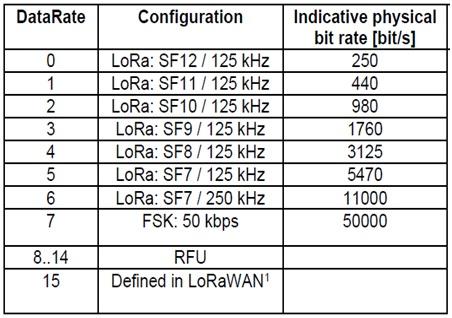

LoRaWAN data rates in China

Following table mentions bit rate or data rate for China LoRaWAN end device.

China LoRaWAN data rates

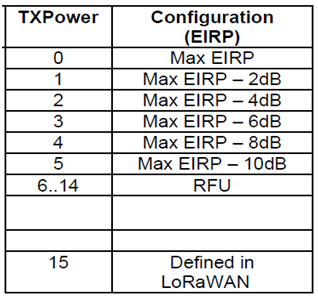

LoRaWAN Transmit (Tx Power) and EIRP in China

The table below mentions Tx Power and EIRP for LoRaWAN Russia region. EIRP of end radio device is less than 12.15 dBm. EIRP stands for Equivalent Isotropically Radiated Power. EIRP is defined as radiated output power referenced to isotropic antenna radiating power equally in all the directions. The gain of isotropic antenna is expressed in dBi.

China LoRaWAN Tx Power EIRP

LoRaWAN frequency Bands in other regions of the world

• 902 to 928MHz RF Band is used in US.
• 433 to 434 MHz RF band is used in EU region.
• 920.5 to 924.5 MHz, 779 to 787 MHz, 470 to 510 MHz, 433.05 to 434.79 MHz, 314 to 316 MHz, 430 to 432 MHz and 840 to 845 MHz LoRaWAN bands are used in CHINA.

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org.
