Understanding the Difference Between EMI and EMC

Introduction

In today’s interconnected world, electromagnetic phenomena play a crucial role in the performance of electronic devices. Two important concepts, Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC), are frequently discussed when addressing the functionality and reliability of electronic systems. EMI refers to the disruptive effects of unwanted electromagnetic signals, while EMC ensures devices can operate harmoniously without causing or being affected by such interference. This article explores the key differences, examples, and significance of EMI and EMC in modern electronics.

Ensuring compliance with EMI (Electromagnetic Interference) and EMC (Electromagnetic Compatibility) standards is critical in the design and manufacturing of electronic devices. These standards are essential not only for the functionality of the device but also to ensure that it operates safely and reliably in its intended environment.

Real-Life Example

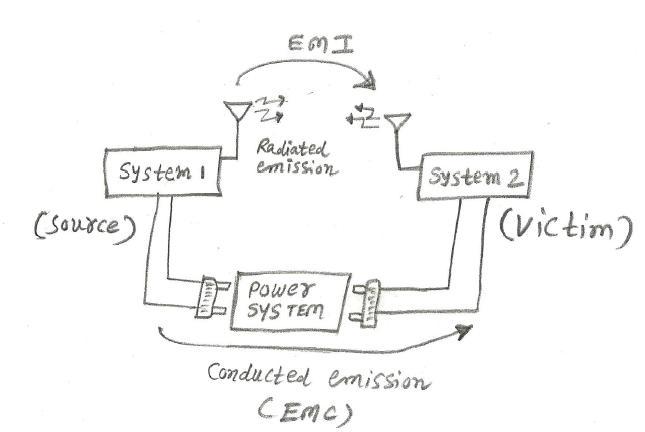

A poorly shielded microwave oven (a source of EMI) might interfere with Wi-Fi signals. Devices like routers are designed with EMC principles to minimize the impact of such disturbances. The image depicts this concept by designating the microwave oven as the “source” (i.e., system 1) and the Wi-Fi router as the “victim” (i.e., system 2).

EMI (Electromagnetic Interference)

Definition

Electromagnetic Interference (EMI) refers to the unwanted disturbance generated by external electromagnetic signals that can disrupt the normal operation of electronic devices. This interference can arise from natural sources (like lightning) or man-made sources (such as electrical circuits or wireless devices).

Types of EMI

• Conducted EMI: Interference that travels through physical conductors, such as cables or circuit traces.
• Radiated EMI: Interference that propagates as electromagnetic waves through the air.
• Common Mode EMI: Appears equally on all conductors relative to a common ground.
• Differential Mode EMI: Occurs between two conductors carrying a signal.

Sources of EMI

• Power lines and transformers
• Motors and generators
• Switching power supplies
• Wireless communication devices

Effects of EMI

• Degrades signal quality in communication systems
• Causes malfunction in sensitive electronic equipment
• Leads to erroneous data in digital systems

It’s important to ensure the EMI level stays within certain limits so that nearby systems function as desired.

EMC (Electromagnetic Compatibility)

Each device generates electrical noise that passes through cables or wires and causes problems for other devices connected to the same electrical system. These conducted emissions (i.e., transients or ripples) should be within acceptable limits for the proper functioning of the other device/system.

Definition

Electromagnetic Compatibility (EMC) is the ability of an electronic device to operate correctly in its electromagnetic environment without causing EMI that would disrupt the operation of other devices in that environment.

Key Aspects of EMC

• Emission: Limiting the electromagnetic noise generated by the device to acceptable levels.
• Immunity: Ensuring the device can function properly even in the presence of external electromagnetic disturbances.
• Susceptibility: The level at which a device is affected by EMI.

Components of EMC Design

• Shielding: Use of conductive enclosures to block radiated EMI.
• Filtering: Employing filters to suppress conducted EMI.
• Grounding: Proper grounding techniques to minimize EMI effects.
• PCB Design: Ensuring appropriate layout and spacing in printed circuit boards to reduce EMI susceptibility.

Why EMC is Important

• Ensures coexistence of electronic devices without mutual interference.
• Prevents malfunction or degradation of performance in critical applications (e.g., medical devices, aviation).
• Compliance with international EMC standards (e.g., FCC, CE) is necessary for market approval.

Difference Between EMI and EMC

The following table compares EMI and EMC terminologies:

Why EMI and EMC Testing is Essential

Regulatory Compliance

• Many countries and regions have strict regulations requiring electronic devices to meet specific EMI and EMC limits before they can be marketed or sold. For example, devices must comply with standards such as FCC (in the USA), CE (in Europe), or CISPR (international).
• These regulations aim to minimize interference between devices and ensure electromagnetic compatibility across industries.

Preventing Malfunction

• EMI can cause devices to behave unpredictably or fail entirely. Testing ensures that the device can operate as intended without being disrupted by external electromagnetic noise or causing disruption to other devices.

Consumer Safety

• Excessive EMI can create hazardous situations, such as interference with medical equipment (e.g., pacemakers) or aviation systems. EMC testing ensures that devices are safe for use in sensitive environments.

Product Reliability

• Devices that fail to address EMI issues may degrade over time or perform inconsistently. By conducting thorough testing, manufacturers can improve the reliability and lifespan of their products.

Market Approval

• Without EMI and EMC testing, manufacturers may face delays or rejection when trying to release their products in global markets. Compliance with standards is a prerequisite for certification.

How EMI and EMC Testing is Conducted

EMI Testing

Measures the electromagnetic noise emitted by the device to ensure it remains within permissible limits. Includes testing for both conducted EMI (through power lines) and radiated EMI (via electromagnetic waves).

EMC Testing

Assesses the device’s immunity to external electromagnetic disturbances and ensures it can function correctly in real-world environments. Includes tests like susceptibility testing, electrostatic discharge (ESD) testing, and radiated immunity testing.

Conclusion

Understanding the distinction between EMI and EMC is vital for designing and maintaining reliable electronic systems. While EMI focuses on identifying and mitigating interference, EMC ensures compatibility and harmonious operation in complex electromagnetic environments.

With the increasing dependence on electronic devices, adopting robust EMI and EMC practices is essential to ensure seamless performance and regulatory compliance. By addressing these aspects, engineers can create systems that are both efficient and dependable.
