What is Inductive Sensor : Advantages and Disadvantages, working

An inductive sensor is a non-contact sensing device used to detect metallic objects through electromagnetic induction. It is widely employed in industrial automation, robotics, and manufacturing systems. Advantages include high reliability and long operating life, while disadvantages include limited sensing range and inability to detect non-metallic materials.

Inductive Sensor Working principle

An inductive sensor is a type of non-contact sensor that operates based on the principles of a transformer. It’s primarily used for position and speed sensing. These sensors rely on a coil, or inductor, for their construction, hence the name “inductive sensor.”

Inductive sensors operate using two fundamental principles:

• The flow of fluctuating current through a wire generates a magnetic field (H).
• Fluctuations in a magnetic field around a conductive body induce current flow within that body.

A proximity sensor serves as a typical example of an inductive sensor.

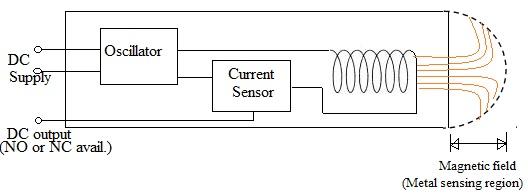

It employs a power supply that causes Alternating Current (AC) to flow through the coil. When a conductive target nears the coil, the coil’s impedance changes, signaling the presence of the target. This allows the sensor to detect the presence or absence of human beings or metal objects in proximity.

The inductive sensor is often called an inductive proximity switch due to its two distinct output states (present/absent). They are used in various applications, including machine tools for sensing metal targets. For more information, refer to proximity sensors of the inductive type.

Advantages of Inductive Sensors

1. Withstands Harsh Environments: Inductive sensors are robust and can operate reliably in challenging environmental conditions.
2. Longer Lifespan: These sensors typically have a longer operational life compared to other types of sensors.
3. Easy Installation: Inductive sensors are generally easy to install and integrate into existing systems.
4. Predictable Performance: They offer very predictable results and consistent performance.
5. Higher Switching Rate: Inductive sensors can switch states (detect/not detect) at a higher rate than some alternative sensor technologies.

Disadvantages of Inductive Sensors

1. Sensing Range Limitations: The sensing range is dependent on the type of metal being detected, its shape, size, and the coil size used in the sensor’s design. This dependency leads to distance limitations in sensing.
2. Metallic Targets Only: They can only detect metallic targets, limiting their application in scenarios involving non-metallic materials.

Summary

Inductive sensors provide reliable metal object detection in industrial environments. Advantages include durability and contactless operation, while disadvantages include short detection distances and material limitations.
