What is QPSK Modulation: Advantages and Disadvantages

Quadrature Phase Shift Keying (QPSK) is a digital modulation technique that transmits two bits per symbol by changing the carrier phase. Its advantages include better bandwidth efficiency and reliable performance, while its disadvantages involve increased receiver complexity and reduced noise tolerance compared to simpler modulation methods.

QPSK Modulation Process and Constellation Diagram

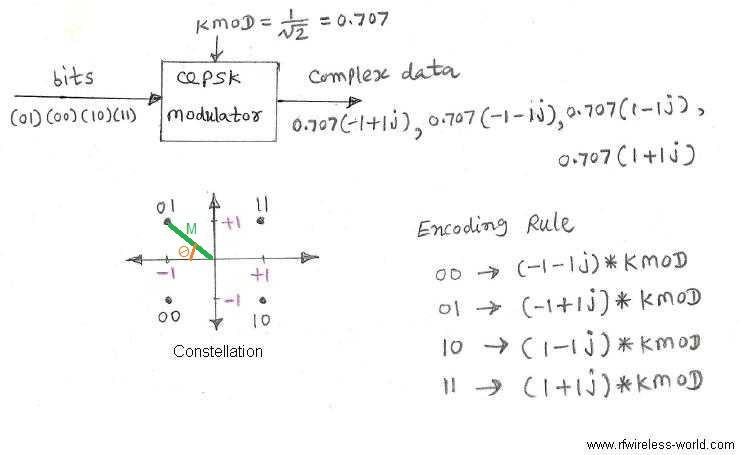

QPSK is a digital modulation technique where two binary bits are represented by a change in the carrier phase of 90 degrees relative to adjacent constellation points. The maximum phase transition between two constellations is 180 degrees. This is visualized in the constellation diagram shown below.

In QPSK, each carrier carries two bits, making the symbol rate half of the bit rate. QPSK is known for being bandwidth efficient but not power efficient.

The QPSK modulation process can be described in the following steps:

Step-1 : Input Bit Stream: The incoming binary data stream is divided into groups of 2 bits, since QPSK represents 2 bits per symbol.

Step-2 : Symbol Mapping: Each 2-bit group is mapped to one of four phase states (typically 45 , 135 , 225, and 315 degrees using Gray coding) corresponding to the four constellation points.

Step-3 : I-Q Component Generation: The mapped symbol is separated into In-phase (I) and Quadrature (Q) components, where one bit determines the I component and the other determines the Q component.

Step-4 : Carrier Modulation: The I component modulates a cosine carrier, while the Q component modulates a sine carrier that is shifted by 90° with respect to the cosine carrier.

Step-5 : Signal Combination: The I and Q modulated signals are added together to form the final QPSK modulated signal.

Step-6 : Transmission: The resulting waveform transmits 2 bits per symbol, providing better bandwidth efficiency than BPSK while maintaining good noise immunity and power efficiency.

Benefits or Advantages of QPSK Modulation

1. Increased Bandwidth Efficiency: QPSK carries two bits on a single analog carrier. This makes it twice as bandwidth-efficient compared to BPSK modulation. The symbol rate is half of the raw bit rate.
2. Bandwidth Efficient: As mentioned above, QPSK is a bandwidth efficient modulation technique because a single carrier transmits two bits.

Drawbacks or Disadvantages of QPSK Modulation

1. Receiver Complexity: In QPSK, each complex symbol represents two binary bits. This increases the complexity of the QPSK receiver compared to a BPSK receiver because it needs to distinguish between four states to recover the binary data.
2. Lower Power Efficiency: Due to the increased complexity, QPSK is not as power-efficient as other modulation techniques. More power is required to transmit two bits simultaneously.

Summary

QPSK modulation offers an excellent combination of bandwidth efficiency and reliable performance, making it one of the most widely used modulation techniques for digital communication networks.
