Introduction:
As we know cellular networks use high power Base Stations (i.e. NBs) to cover larger
distances in order to serve more number of users. 5G uses higher frequencies such as millimeter waves which
gets blocked due to obstacles and as a result mobile users will not receive 5G signals behind such obstacles.
Small Cells address this blocking problem.
What are 5G Small Cells
The 5G small cells are low power mini base stations spread across the region to be served. They are basically low power wireless APs (Access Points) which operate in licensed spectrum. They are managed by telecom operators. Due to their small sizes, they can be installed easily in indoor places and space constrained places also. Hence they help in improving the cellular coverage and to fill coverage holes.

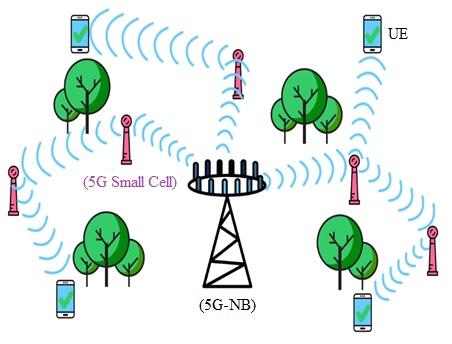

Small cells are available throughout the region to be served and hence they maintain quality of the signal everywhere. Small cells receive the 5G signal from main NB and relay the same to users. When the user moves behind the obstacle, the cell phone automatically switches to mini Bas station i.e. small cell to keep the connection intact. This helps 5G users to avail uninterrupted 5G network coverage. The figure depicts the typical installed 5G network of small cells along with main 5G-NB (or 5G Base Station).
5G Small Cell Types
Following table mentions 5G Small cell types with their respective features. The table mentions deployment scenarios, number of users supported, power range and distance covered by these small cells.
| 5G Small Cell types | Deployment | Number of concurrent users | Power range | distance coverage |
|---|---|---|---|---|
| Femto cell | It is primarily used in residences and enterprises | 4 to 8 users (residence) 16 to 32 users (enterprise) |
10 to 100 mW (Indoor) 0.2 to 1 Watt (Outdoor) |
10s of meters |
| Pico cell | Public areas such as indoors, outdoors, airports, malls, train stations | 64 to 128 users | 100 to 250 mW (Indoor) 1 to 5 Watt (Outdoor) |
10s of meters |
| Micro cell | Urban areas to fill macro coverage gaps | 128 to 256 users | 5 to 10 Watt (Outdoor) | Few 100s of meters |
| Metro cell | Urban areas to provide additional capacity | > 250 users | 10 to 20 Watt (Outdoor) | 100s of meters |
| WiFi | Residences, offices, enterprises | < 50 users | 20 to 100 mW (Indoor) 0.2 to 1 Watt (Outdoor) |
Few 10s of meters |
Advantages of 5G Small cells
Following are the benefits or advantages of 5G Small cells:
➨It improves coverage in the areas where signal is weak or not available
due to blocking. This helps in serving indoor places as well as
outdoor places behind obstacles with better service.
➨Due to above, small cells provide support for more number of users in
5G cellular network.
➨As small cells are closer to users, they experience faster data services due to lower
latency.
➨Small cells consume less power due to low power operation.
➨Small cells are smaller in size and hence they are easy to install and handle.
➨It helps in offloading cellular traffic to serve users efficiently with
better quality of signal.
5G Small Cells Manufacturers
Following are the manufacturers of 5G Small cells.
• Ericsson has introduced Radio Dot
which is palm size small base station to provide
indoor coverage. The product RBS 6402 is a pico cell which supports WCDMA, LTE and WiFi.
• Qualcomm is working with ITRI to develop 5G NR small cell products.
• Nokia has wide number of products to address small cells market for 4G and 5G technology based networks.
• Commscope offers small cell solutions to provide coverage in small and large offices
at indoor areas for LTE network.
• Qorvo offers products based on various small cell types to have smooth transition of
pre-5G/LTE-A Pro networks.
