A Passive Infrared (PIR) motion sensor is an electronic sensor that detects infrared (IR) light radiating from objects in its field of view. PIR sensors are commonly used in motion detection applications, such as security systems, automatic lighting and various other motion-sensing applications.
How PIR Motion Sensors Work
Following key points summarize working operation and construction of PIR motion sensor.

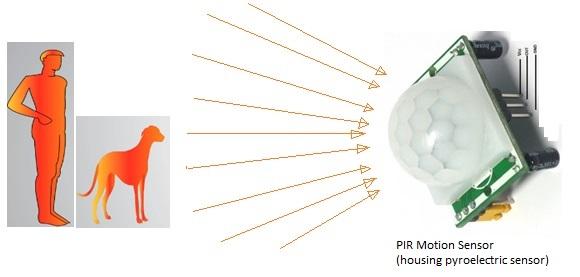

• PIR sensors detect the infrared radiation emitted by all warm objects, including human bodies.
They are called "passive" because they do not emit any energy themselves; they only detect the infrared energy emitted by other objects.
• The sensor consists of a pyroelectric material that generates an electric charge when exposed to
infrared radiation. The material is divided into two halves, and any change in the infrared radiation striking the sensor
will cause a differential change in the charges on the two halves.
• A Fresnel lens is often used to focus the infrared radiation onto the sensor. This lens divides the sensor's
field of view into multiple zones, enhancing its sensitivity to motion.
• The sensor detects changes in infrared radiation levels and converts them into electrical signals.
These signals are processed to determine if there has been a significant change, which would indicate motion.
PIR motion sensor Applications
Following are the 10 applications of PIR motion sensors including in security systems.
1. There are different ways PIR sensors are incorporate in security systems for various functions.
• Intruder Detection: PIR sensors are integral to burglar alarm systems.
They detect the presence of intruders by sensing changes in infrared radiation,
triggering alarms, and notifying security personnel.
• Perimeter Security: Used in outdoor settings to monitor the perimeter of a property.
They can activate alarms or lights when motion is detected, providing a deterrent to potential intruders.
• Surveillance Cameras: Integrated with security cameras to activate
recording only when motion is detected, saving storage space and power.
2. Automatic Lighting:
• Indoor Lighting: Automatically turn lights on when someone enters a room and off when the room is empty,
enhancing convenience and energy efficiency.
• Outdoor Lighting: Used in security lighting systems to illuminate driveways, pathways, and other
outdoor areas when motion is detected, improving safety and security.
3. Home Automation:
• Smart Home Systems: Integrated with smart home devices to automate various functions such
as adjusting thermostats, controlling appliances, and managing lighting based on occupancy.
• Energy Management: Helps reduce energy consumption by ensuring lights and devices are only on when needed.
4. Commercial and Industrial Applications:
• Occupancy Sensors: Used in offices, conference rooms, restrooms
and other commercial spaces to manage lighting and HVAC systems based on occupancy, improving energy efficiency.
• Automatic Doors: Activates automatic doors in retail stores, hospitals
and other facilities when motion is detected near the entrance.
5. Healthcare:
• Patient Monitoring: Used in hospitals and care facilities to monitor patient movement,
ensuring safety and providing alerts if unusual activity is detected.
• Elderly Care: Helps in monitoring the activity of elderly individuals, providing
alerts in case of falls or lack of movement.
6. Consumer Electronics:
• Game Controllers: Used in some gaming devices to detect player
movement and enhance the gaming experience.
• Interactive Displays: Activates interactive displays and
kiosks when a user approaches, enhancing user engagement.
7. Retail and Advertising:
• Digital Signage: Activates digital signage displays when customers are nearby,
capturing attention and providing targeted advertising.
• Customer Flow Analysis: Helps in analyzing customer movement
patterns within a store, optimizing store layout and product placement.
8. Transportation:
• Vehicle Security: Installed in cars to detect unauthorized entry or movement,
triggering alarms to prevent theft.
• Public Transportation: Used in buses and trains to manage lighting and ventilation based on occupancy.
9. Energy Conservation:
• Building Automation: Helps in reducing energy consumption in large buildings by
controlling lighting and HVAC systems based on real-time occupancy data.
• Smart Cities: Integrated into smart city infrastructure to manage street lighting and public facilities efficiently.
10. Pet and Wildlife Monitoring:
• Pet Security: Monitors pet movement within the home, triggering notifications
if a pet enters restricted areas.
• Wildlife Observation: Used in wildlife research to monitor the movement of animals without disturbing their natural habitat.
PIR motion sensors are also used in agriculture, personal safety devices, industrial automation, entertainment and event management as well as environmental monitoring systems.
Advantages of PIR motion sensors
Following are the benefits or advantages of PIR motion sensors.
➨PIR sensors consume very little power, making them suitable for battery-operated devices.
➨They are relatively inexpensive and easy to manufacture.
➨They are generally reliable and have a long operational life.
➨They detect motion without emitting any radiation, making them safe for use in various environments.
Limitations of PIR motion sensors
Following are the drawbacks or limitations of PIR motion sensors.
➨The detection range and coverage area are limited and can be affected by obstacles.
➨Performance can be influenced by ambient temperature, as the sensor relies on detecting heat differences.
➨Can sometimes trigger false alarms due to sudden changes in temperature or the presence of animals.
Conclusion : PIR motion sensors are integral to modern technology, providing reliable, cost-effective and efficient solutions for a wide range of applications across various industries.
