Solar PV System Fundamentals: Stand-Alone, Grid-Tied, and Hybrid

This page covers the fundamentals of solar photovoltaic (PV) systems. We’ll discuss different types, including stand-alone and grid-tied systems. PV stands for Photovoltaic, referring to the system’s ability to convert solar energy into electrical energy using the photovoltaic effect.

The converted energy is then supplied to the load after undergoing necessary conversions. PV modules are often arranged into arrays to boost electrical energy production. Let’s dive into the different classifications of solar PV systems.

Stand-Alone Solar PV System

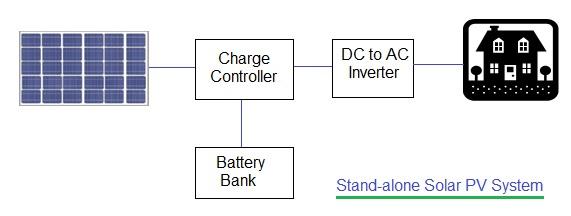

Figure 1: Stand-Alone Solar PV System

As the name suggests, a stand-alone solar PV system operates independently from the electrical distribution grid. It’s isolated, making it suitable for remote locations or off-grid applications. A typical stand-alone system consists of:

• PV Array: Generates DC electricity from sunlight.
• Charge Controller: Regulates the voltage and current from the PV array to protect the batteries.
• DC to AC Inverter: Converts DC electricity from the batteries into AC electricity for powering household appliances or other AC loads.
• Battery Bank: Stores excess energy generated by the PV array for use when sunlight is unavailable.

To improve the system’s reliability, an additional generator can be included as a backup power source. A DC-to-DC converter may also be used to power DC loads directly. In some scenarios, the PV array can be directly connected to a DC load if alternative storage solutions are in place.

Grid-Tied Solar PV System

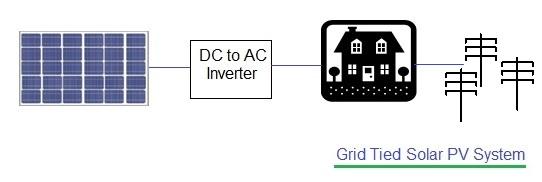

Figure 2: Grid-Tied Solar PV System

A grid-tied solar PV system, also known as a grid-connected system, doesn’t require battery storage. It connects directly to the electrical distribution network (the grid). This type of system also uses a DC-to-AC inverter to convert the DC electricity generated by the PV array into AC electricity compatible with the grid.

Grid-tied systems offer several advantages over stand-alone systems:

• Utilizes Existing Infrastructure: It leverages the existing electrical grid infrastructure.
• Efficient Energy Use: It makes efficient use of available solar energy. When the PV output exceeds demand, the excess energy is fed back into the grid.
• Smaller PV Arrays: Can meet the same load demand with smaller PV arrays compared to stand-alone systems.
• Eliminates Energy Storage: Removes the need for expensive batteries and their associated costs.

Hybrid Solar PV System

Hybrid solar PV systems aim to combine the benefits of both stand-alone and grid-tied systems, offering greater flexibility and reliability. These systems typically incorporate battery storage, a generator, or both, in conjunction with a grid connection. This allows them to operate independently during grid outages while still benefiting from grid connectivity when available.
