What is Camera Link Standard : Advantages and Disadvantages

Camera Link is a high speed digital communication standard used to connect industrial cameras with frame grabbers and image processing systems. It supports reliable transmission of high resolution image data for machine vision applications. Advantages include low latency and high bandwidth, while disadvantages include limited cable length and higher system costs.

Key features of Camera Link Standard

The Camera Link standard was developed by a consortium of frame grabber and camera manufacturers. Cameras adhering to this standard rely on camera files, which define how the camera interacts with the frame grabber.

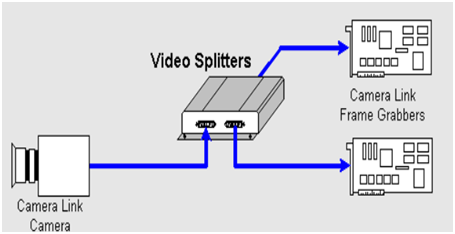

The figure depicts camera link splitters used to distribute video from camera to frame grabbers. They are interfaced using camera link standard cables.

Here are some key features of the Camera Link standard:

• Achievable bandwidth: 250 Mbps (Base), 850 Mbps (Deca)
• Scalability using parallel lanes: Yes
• Maximum cable length: 10 meters
• Power supply via data cable: Yes
• Real-time trigger: Excellent

Advantages of Camera Link Standard

1. Higher Speed: Camera Link offers faster data transfer rates.
2. Higher Pixel Depth: It supports greater pixel depth in images.
3. Large Image Sizes: It can handle large image sizes effectively.
4. Easy Configuration: Camera attributes are easy to configure.
5. Deterministic Trigger and Timing: Offers precise trigger and timing control.
6. Large Data Processing: A large amount of data can be processed on the CPU using Camera Link extensions.
7. Uniform Cabling: Standardized cabling can be used between cameras and image acquisition devices from different manufacturers.

Disadvantages of Camera Link Standard

1. Limited Product Availability: There are relatively few products available that utilize this standard.
2. Expense: It is more expensive compared to IEEE 1394, Gigabit Ethernet, and analog standards.
3. Camera File Requirement: Requires camera files for use with NI IMAQ image acquisition.

Summary

Camera Link is a high speed interface standard for machine vision systems. Advantages include reliable image transfer and low latency, while disadvantages include cable limitations and higher implementation costs.
