What is BGA (Ball Grid Array) : 10 Advantages and Disadvantages

Ball Grid Array (BGA) is a surface-mount packaging technology that uses solder balls arranged in a grid beneath an integrated circuit. It enables high pin density and improved electrical performance. Advantages include compact design and better thermal characteristics, while disadvantages include inspection difficulty, repair complexity, and higher assembly costs.

Introduction : BGA stands for Ball Grid Array. It’s a type of Surface Mount Package (SMP) used for integrating Integrated Circuits (ICs). BGAs are used for permanently mounting devices. They offer more connection points than older packaging methods like DIL (Dual In-Line) or flat packages.

Key Features

• The entire bottom surface of a BGA is used for connections, rather than just the perimeter.
• BGAs conduct signals between ICs and PCBs (Printed Circuit Boards).
• They use small solder balls for connecting the component to the board.
• BGA design results in lower inductance, which means less signal degradation.
• Inside a BGA package, the active chip can be interconnected using wire bonding.

Types of BGAs

Here are some common types of Ball Grid Arrays:

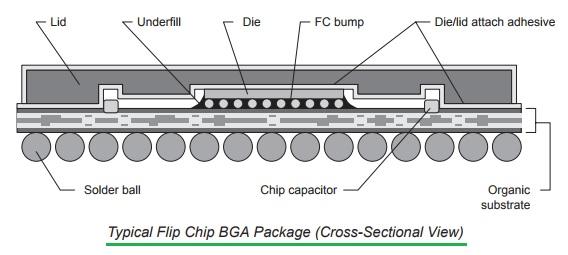

• Plastic Ball Grid Array (PBGA), as shown in the image above.
• Cavity Plastic Ball Grid Array (CPBGA)
• Ceramic Ball Grid Array (CBGA)
• Tape Ball Grid Array (TBGA)

Benefits (Advantages) of BGA

Here’s a breakdown of the advantages of using BGA packaging:

1. Used in microcontrollers, microprocessors, RAM devices, PC chipsets, and more.
2. Lower inductance power planes enable designs to operate at higher frequencies.
3. Supports a greater number of pins compared to wirebond packages.
4. Better current distribution minimizes IR drops. In BGA, power is distributed through the top metal layer metal bumps.
5. PBGAs generally offer good thermal compatibility with PCBs.
6. BGA components often have autoregistration capability during soldering.
7. Generally, BGAs offer a relatively lower cost solution.
8. The PBGA type of BGA packaging usually has excellent electrical performance.
9. CBGA and TBGA types provide better heat dissipation compared to PBGAs.
10. BGA allows more interconnects in a smaller area compared to traditional packages.

Drawbacks (Disadvantages) of BGA

Despite their advantages, BGAs also have some drawbacks:

1. PBGA and TBGA types are susceptible to moisture.
2. CBGA can have issues with thermal compatibility with the PCB, and they are more expensive.
3. The CBGA type may not self align as well during soldering.
4. TBGAs tend to have relatively lower reliability compared to other BGA types.
5. Visual inspection is challenging due to hidden solder joints beneath the package

Summary

Ball Grid Array (BGA) packaging provides high-density IC interconnections for modern electronics. Advantages include compact size and improved performance, while disadvantages include challenging inspection and rework processes.
