SENT Protocol (SAE J2716): Benefits & Limitations

The SENT (Single Edge Nibble Transmission) protocol was developed to provide a cost effective, high resolution point to point interface between automotive sensors and an ECU, allowing digital measurement data to be communicated without the complexity or expense of a full network bus.

What is SENT Protocol

• It stands for Single Edge Nibble Transmission.
• It is defined in SAE J2716 standard for automotive sensor communication.
• It is a unidirectional communication protocol from sensor to controller/ECU. The sensor transmits the data to ECU and ECU doesn’t send commands back on this line.

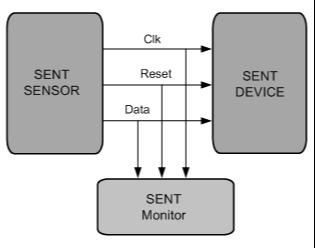

SENT Physical Layer

• It uses three wires viz. supply voltage (commonly 5V), ground and SENT signal output line from the sensor.
• Data is encoded by measuring time intervals between falling edges of the signal. In essence, length of the high pulse between falling edges encodes a nibble i.e. 4 bits.
• The basic time unit is a “tick”, which is configurable between ~ 3 to 90 microseconds depending on implementation of the sensor.

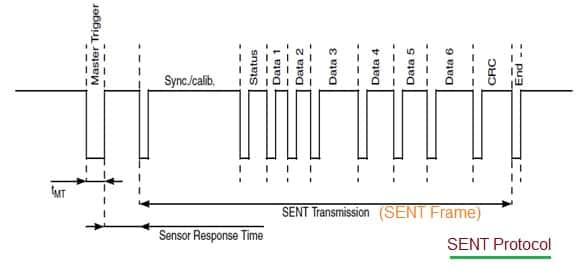

SENT Message/Frame Structure

Typical sequence includes following fields.

1. Sync Pulse : Used for synchronization
2. Status/Communication nibble : carrying status or slow‐channel data.
3. Data nibbles : 1 to 6 nibbles (each 4 bits) carrying the measured sensor values.
4. CRC nibble : Used for error checking
5. Optional pause pulse : to ensure constant overall frame length

Advantages of SENT Protocol

Following are some of the benefits of SENT.

1. It uses minimal wiring (3 wires) and hence simple hardware receiver design.
2. High resolution: sensor data can be encoded with precision rather than coarse PWM or analog.
3. Deterministic timing and simple decoding of pulses.
4. It is point to point and unidirectional and hence it is ideal for sensors (pressure, temperature, position) where you don’t need a full network bus.
5. Common in automotive domains such as engine/pressure sensors, chassis sensors, where one sensor sends to one ECU without needing many nodes.

Disadvantages of SENT

Following are some of the limitations of SENT protocol.

1. No bidirectional communication or bus arbitration.
2. Not suitable for multi‐node networks or complex control messages (unlike CAN or LIN).
3. Requires careful timing and receiver must be able to decode the pulse intervals accurately.
4. Specialized decoding logic needed (timers/interrupts) rather than typical UART/SPI logic.

Example IC

ZSSC416x/7x is an automotive sensor signal conditioner IC with SENT 3.0 protocol. It is developed by Renesas Electronics Corporation as per SAE J2716. Following are some of the main features of the IC as mentioned on renesas.com website.

• A/D conversion up to 18 bits
• Sample rates up to 1.48 KHz
• Output interface type : I2C, SENT
• Output resolution : 15 bit via I2C, 12 bit SENT output

Summary: The SENT protocol is a simple, efficient, unidirectional interface for sensor data in automotive systems. It is optimized for cost, resolution and simplicity rather than full network flexibility. It complements existing bus protocols such as CAN or LIN but does not replace them.
