Introduction : 3D printed antennas represent a transformative innovation in the field of radio frequency (RF) and wireless communication. By leveraging additive manufacturing technologies, engineers can design and fabricate complex antenna geometries with increased customization, reduced production time and potentially lower costs. These antennas can be integrated into unconventional structures and materials, making them ideal for applications ranging from aerospace to wearable electronics.
What is a 3D Printed Antenna?
Introduction: 3D printing involves joining or solidifying material under computer control to create a three-dimensional object. An antenna developed using this technology is referred to as a 3D printed antenna.
This technology facilitates rapid prototyping and can be used as an additive manufacturing method. 3D models are created using CAD software, 3D scanners, or camera/photogrammetry software. Utilizing CAD-developed models can lead to a reduction in errors in the final product.
3D printing technology has been applied to various RF products, including waveguides, antennas, filters, and other components, ranging from C band to W band.
Examples:
- Tripole or dual dipole antennas
- Gallium-based 3D antenna arrays

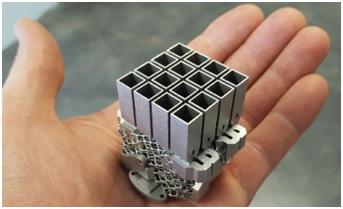

- 16-element antenna array developed by Optisys (as shown in the figure above).
Benefits or Advantages of 3D Printed Antennas
The following are the benefits of using 3D printed antennas:
- Lightweight: 3D printing generally produces antennas with less weight.
- Cost-Effective: 3D printing can result in cheaper antenna production.
- Design Flexibility: 3D printing allows for the manufacture of complex shapes, offering more flexibility compared to traditional approaches.
- Ease of Construction: They are relatively easy to construct using sophisticated tools.
- High Accuracy: 3D printing provides high accuracy in manufacturing processes, as the design is executed with precision akin to photo etching.
- Innovation and Customization: The technology fosters highly innovative and customizable designs.
- High Directivity: 3D printed microstrip antennas can offer high directivity.
Drawbacks or Disadvantages of 3D Printed Antennas
The following are the drawbacks of using 3D printed antennas:
- Fragility: 3D printed antennas can be fragile and susceptible to damage.
- Cost of Certain Materials: Some designs, such as metal 3D printed antennas, can be expensive to manufacture.
- Aesthetics: The appearance of 3D printed antennas may not always be ideal.
- Surface Roughness: The layer by layer process of 3D printing can result in surface roughness, which negatively affects high frequency performance and can lead to increased signal losses or impedance mismatch.
- Lower Mechanical Strength: Some 3D printed antennas, especially those made with polymer-based materials, may lack the durability and thermal stability required for harsh or outdoor environments.
- Post Processing Requirements: Many 3D printed antennas require additional steps such as metallization, polishing or curing to be functional, which adds time, complexity and cost to the manufacturing process.
Conclusion: 3D printed antennas offer a promising alternative to traditional manufacturing methods, enabling greater design flexibility, faster prototyping, and potential cost savings. As 3D printing technology continues to evolve, many of these limitations may be addressed, paving the way for broader deployment of 3D printed antennas in next generation wireless systems.
