All logic gates HDL Verilog Code

This page of verilog sourcecode covers HDL code for all the logic gates using verilog.

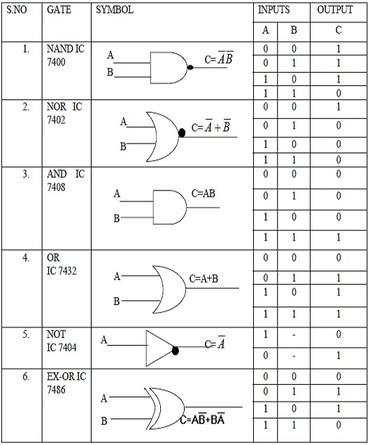

Truth table with symbols

Verilog code

module allgate ( a, b, y );

input a,b;

output [1:6] y;

assign y[1]= a & b;

assign y[2]= a | b,

assign y[3]= ~a ,

assign y[4]= ~(a & b),

assign y[5]= ~(a | b),

assign y[6]= a ^ b;

end module

• After the program is synthesized create a Test bench, load the input.
• Highlight the tbw file and click onto Modelsim Simulate behavioral model.
• Now click the waveform and zoom it to view the result.

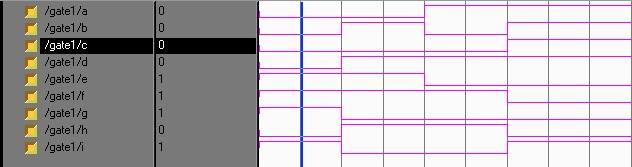

Simulation result
