FIR Digital Filter using triangular Window technique
This section of MATLAB source code covers FIR low pass and high pass filter using triangular method.
FIR Low Pass Filter MATLAB Code
clc;
close all;
clear all;
format long;
rp=input('enter the passband ripple:(default:0.04)');
rs=input('enter the stopband ripple:(default:0.02)');
fp=input('enter the passband frequency:(default:1500)');
fs=input('enter the stopband frequency:(default:2000)');
f=input('enter the sampling frequency:(default:8000)');
wp=2*(fp/f);
ws=2*(fs/f);
num=-20*log10(sqrt(rp*rs))-13;
dem=14.6*(fs-fp)/f;
n=ceil(num/dem);
n1=n+1;
if(rem(n,2)~=0)
n1=n;
n=n-1;
end;
y=triang(n1);
%Lowpass filter
b=fir1(n,wp,y);
[h,o]=freqz(b,1,256);
m=20*log10(abs(h));
subplot(2,1,1);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of LPF ----');
grid on;
close all;
clear all;
format long;
rp=input('enter the passband ripple:(default:0.04)');
rs=input('enter the stopband ripple:(default:0.02)');
fp=input('enter the passband frequency:(default:1500)');
fs=input('enter the stopband frequency:(default:2000)');
f=input('enter the sampling frequency:(default:8000)');
wp=2*(fp/f);
ws=2*(fs/f);
num=-20*log10(sqrt(rp*rs))-13;
dem=14.6*(fs-fp)/f;
n=ceil(num/dem);
n1=n+1;
if(rem(n,2)~=0)
n1=n;
n=n-1;
end;
y=triang(n1);
%Lowpass filter
b=fir1(n,wp,y);
[h,o]=freqz(b,1,256);
m=20*log10(abs(h));
subplot(2,1,1);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of LPF ----');
grid on;
FIR High Pass Filter MATLAB Code
%Highpass filter
b=fir1(n,wp,'high',y);
[h,o]=freqz(b,1,256);
m=20*log10(abs(h));
subplot(2,1,2);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of HPF ----');
grid on ;
b=fir1(n,wp,'high',y);
[h,o]=freqz(b,1,256);
m=20*log10(abs(h));
subplot(2,1,2);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of HPF ----');
grid on ;

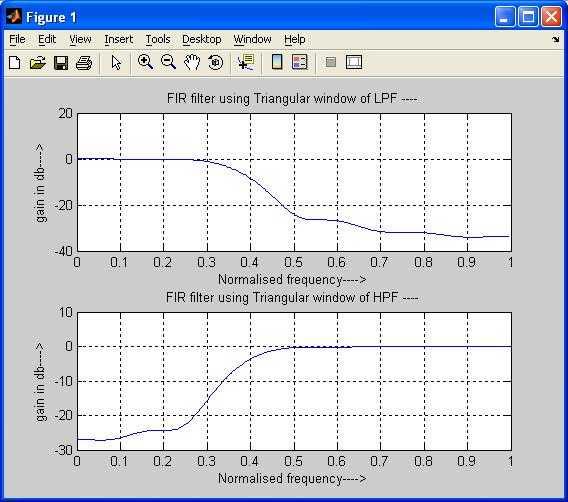

Output plot
