Traveling Wave Tube(TWT) Gain calculator

This page of converters and calculators section covers Traveling Wave Tube (TWT) gain calculator.

RF Frequency in GHz (input1) :

Helix Impedance,K (Ohm) (input2) :

Applied DC Voltage, KV (input3) :

DC Current, mA (input4) :

Electron velocity, m/sec (input5):

Length, m (input6):


Traveling Wave Tube(TWT) Gain (Output):

TWT Equation

Following equation or formula is used for Traveling Wave Tube (TWT) calculator.

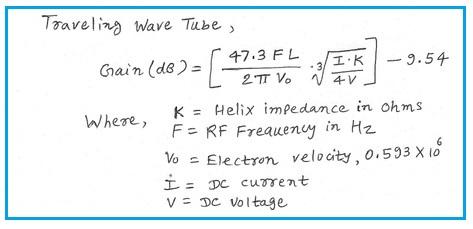

Traveling Wave Tube (TWT) Gain equation
