How to calculate k-factor ?

The K-factor formula and its calculator are useful tools for RF (Radio Frequency) amplifier design and analysis. In RF engineering, amplifiers play a crucial role in boosting the strength of signals while maintaining signal fidelity. The K-factor, also known as the gain compression factor, provides insights into how an amplifier's gain varies as the input signal level changes. Explore RF K-factor calculator and factor k formula used for calculation of stability factor of an RF Amplifier.

Following points summarize why the K-factor formula and its calculator are valuable.
➨The K-factor quantifies the nonlinearity of an amplifier. In practical terms, it indicates how much the amplifier's gain decreases as the input signal level increases.
➨By using the K-factor formula and calculator, engineers can predict how an amplifier will perform under different operating conditions.
➨Amplifier designers can use the K-factor to optimize amplifier circuits and parameters for specific applications.
➨In amplifier design, there are often trade-offs between gain, linearity, power consumption, and other factors. The K-factor provides a metric for evaluating these trade-offs.
➨Understanding the K-factor of individual amplifiers is essential for predicting overall system performance. By incorporating K-factor analysis into system-level simulations, engineers can optimize the entire system for optimal performance.

S11_magnitude (input1) :
S11_angle (input2) :
S22_magnitude (input3) :
S22_angle (input4) :
S12_magnitude (input5) :
S12_angle (input6) :
S21_magnitude (input7) :
S21_angle (input8) :


RF Amplifier K-Factor (Output) :

EXAMPLE of RF K-factor calculator:
INPUTS: S11(magnitude,angle)= (0.2552, 156.2o) ;
S22(magnitude,angle)= (0.1544, -95.3o);
S12(magnitude,angle)= (0.0994, 41.5o);
S21(magnitude,angle)= (5.636, 53.1o);
OUTPUT: RF Amplifier K-factor (Stability factor) = 1.0618

RF Amplifier K-factor formula

K-factor is calculated from all the S-parameters viz. S11, S12, S21 and S22. It represents stability of the RF amplifiers. When K-factor > 1 while Delta < 1, the RF amplifier is said to be unconditionally stable for any load. Refer amplifier stability conditions>>.

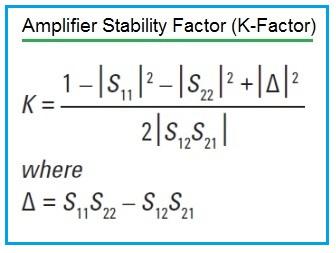

Following equation or formula is used for RF K-factor Calculator i.e. RF stability factor Calculator. It is also known as Rollet Stability Factor of the RF Power Amplifier.

RF k-factor or stability factor Formula

In summary, the K-factor formula and its calculator are valuable tools for RF amplifier design and analysis because they provide insights into gain compression, help predict amplifier performance, enable optimization, facilitate trade-off analysis and support system-level design considerations.
