Phase Shift Calculator, Phase Shift Formula | phase angle calculator

This Phase Shift Calculator calculates phase shift or phase angle from frequency and time delay. The phase shift formula for this calculator for phase shift in degrees and radian units are mentioned.

Phase Shift Calculator

Frequency, Hz(input1) :

Time Delay Δt in ms (input2) :


Phase Shift in degrees (output1) :

Phase Shift in radian (output2) :

EXAMPLE#1 Phase Shift Calculator:
INPUTS: Frequency = 500Hz, Time Delay = 0.5ms
OUTPUTS: Phase shift (Degrees)=90, Phase angle or shift (Radian)= 1.57

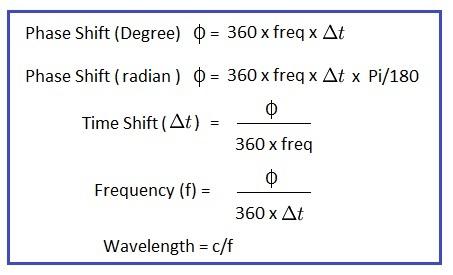

Phase shift formula for phase angle calculator

Following Phase shift formula is used by this phase angle calculator.

phase shift formula, phase angle formula
