5G Antenna Radome Manufacturers | Antenna Radome material

This page mentions 5G Antenna Radome Manufacturers. The specifications of 5G NR massive mimo antenna radome and materials used by manufacturers of antenna radome are also mentioned.

What is 5G Antenna Radome ?

The protective enclosure around the antenna used to protect itself from harsh environments is known as radome. It attenuates EM signals during transmission and reception minimally.

The radome used to protect 5G massive mimo antenna array is known as 5G antenna radome. 5G NR supports different frequency bands sub-6 GHz and above 6 GHz in mmwave region.

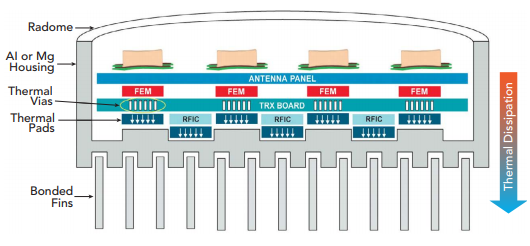

5G Massive MIMO antenna radome
Image Courtesy : microwavejournal.com

The figure depicts cross section of radome around antenna panel housing antenna array along with other layers such as FEM (Front End Modules), RFICs and so on. Radome material should be anti-temperature, water proof, anti-aging and weather resistant.

Antenna Radome Material

Following materials are considered for antenna radome as per specifications.
• PVC, FRP and ASA are used for sub-6 GHz radome materials. These meaterials offer good mechanical, thermal and dielectric properties below 6 GHz. For these materials, dielectric losses increase significantly for mmwave frequencies and hence thickness of material is appropriately choosen to compensate for these losses.
• The other alternatives to radome materials include syntactic foams, prepregs or other composite constructions which perform better at high frequencies.
• Following table mentions selection of materials used for antenna radome.

Material Brand Dielectric constant Loss Tangent
Epoxy/Fiberglass G10, FR4 4.9 0.0190
Acetal Delrin, Celon 3.7 0.0050
ABS Lustran, Cycolac 3.23 0.0200
Nylon 6/6 Zytel 3.2 0.0210
Polyetherimide Ultem 3.15 0.0013
Polystyrene Styron 2.75 0.0005
Polycarbonate Lexan 2.35 0.0100
UHMWPE Dyneema 2.2 0.0004

Permittivity, loss tangent and radome material thickness must be selected carefully in conjunction with distance to antenna elements in order to enable optimal performance.

Antenna Radome manufacturers

Following table mentions manufacturers of Antenna Radome along with technical features.

Antenna Radome Manufacturers Description
Pacific Radomes Inc., Minden, NV 89423 • Manufacture lightweight composite radome structures for frequencies up to 100 GHz.
DOFRP, Japan, China, Vietnam • The company uses different materials to manufacture radome as per desired specifications.
Infinite Technologies Incorporated, CA 95762 • The company manufactures radomes and composite structures.
• The company provides services to manufacture radome as per specific requirements.
• Website : https://compositeradomes.com/
Diab Group, Sweden • Website : https://www.diabgroup.com/
Om Aakash Fibres, Mumbai, INDIA • Leading FRP/GRP antenna radome manufacturer
• Website : http://www.omaakashfrp.com/
