Doppler Radar Systems: Principles, Effect, and Applications

The Doppler radar system stands as a cornerstone of modern radar technology. It leverages the principles of the Doppler effect to measure frequency shifts in waves reflected from moving objects. This technology is crucial in diverse fields, including weather forecasting, air traffic control, and, notably, police radar for measuring vehicle speed. By understanding the underlying principles, frequency equations, and practical applications of Doppler radar, we can appreciate its role in enhancing safety, security, and efficiency across numerous sectors. Doppler radars are relatively simple and often utilize continuous waves for transmission, leading to them sometimes being referred to as CW (Continuous Wave) radars.

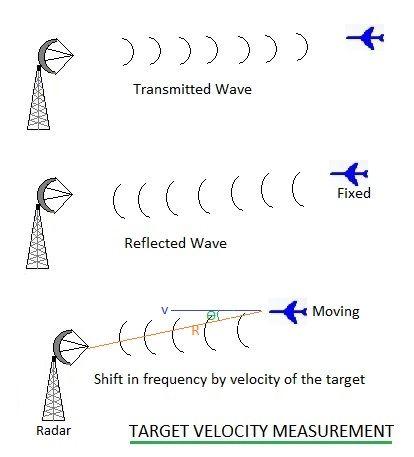

Doppler radar systems typically operate at microwave frequencies, in the range of a few gigahertz (GHz). The fundamental principle behind their operation is as follows: the frequency of the returned signal (the echo) from a stationary target remains the same as the transmitted wave. However, the frequency of the returned signal from a moving target is shifted based on the Doppler frequency. By measuring the difference between the transmitted and received frequencies, the radar can extract the relative velocity of the target.

Let’s consider a scenario where a target is moving towards the radar. In this case, the distance between the radar and the target is decreasing, and the rate of this decrease depends on the velocity of the moving target. The radar experiences an apparent shift in the frequency of the returned wave, known as the Doppler shift. This shift is typically on the order of 1 kHz when the transmitted wave is in the GHz range. Based on this frequency change, the velocity of the target can be determined, and its direction of movement can also be identified. This is described below with the Doppler radar equation.

Doppler Shift Equation:

$f_d = \frac{2 f_0 v \cos\theta}{c} = \frac{2 v \cos\theta}{\lambda_0}$

Where:

• $f_d$ is the Doppler Frequency Shift
• $v$ is the relative velocity of the target, making an angle $\theta$ with respect to the position vector ($R$).
• $\lambda_0 = c/f_0$
• $f_0$ is the frequency of the transmitted radar signal
• “c” is the speed of light ($3 \times 10^8$ m/sec)

When the target is moving towards the radar, the angle $\theta$ will be between 0 and 90 degrees, and the signal frequency $f_0$ will increase by the amount $f_d$. Conversely, when the target is moving away from the radar, the angle $\theta$ will be between 90 and 180 degrees, and $f_0$ will decrease by $f_d$. When the velocity is perpendicular to the radar’s line of sight, there will be no change in $f_0$, and $f_d$ will be zero.

In Doppler radar, the range rate can be determined by measuring the Doppler frequency shift and its polarity. However, due to the continuous nature of the CW emission, basic Doppler radar is not suitable for range measurement. This principle is used in police radar for tracking the velocity of fast-moving vehicles. It’s also employed in rate-of-climb meters and for measuring the velocity of aircraft.

What is the Radar Doppler Effect?

As mentioned, the Doppler effect in radar is a phenomenon where the frequency of a radar signal changes when it’s reflected off a moving target. This effect is named after Austrian physicist Christian Doppler. The change in frequency is proportional to the target’s velocity and the wavelength of the radar signal. The Doppler effect has several functions, applications, and uses, including speed measurement, weather radar, air traffic control, and military applications.

The Doppler radar operates based on the principle of the Doppler effect. The Doppler effect in radar is dependent on the motion of the target relative to the radar system. There are three possible scenarios:

• If the target is approaching the radar, the reflected signal frequency will be higher, indicating a positive Doppler shift.
• If the target is moving away from the radar, the reflected signal frequency will be lower, indicating a negative Doppler shift.
• If the target is stationary relative to the radar, there is no frequency change (i.e., zero Doppler shift).

The frequency shift is directly proportional to the relative velocity between the radar system and the target. By measuring this shift, the radar can determine the speed and direction of the target’s motion.

Police Radar Based on the Doppler Principle

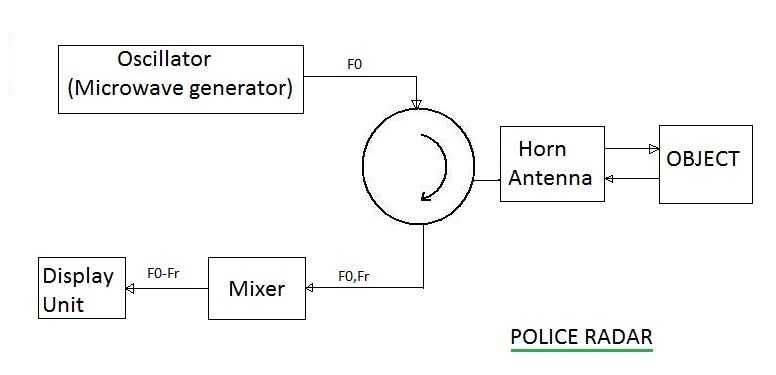

Figure 2 illustrates the modules used in police radar, which is designed to detect and measure the velocity of moving vehicles. A microwave signal generator serves as the transmitter. Typically, a Gunn diode-based oscillator generates the microwave signal. This signal is transmitted through a horn antenna via an RF circulator. A portion of the transmitted signal leakage is used for comparison with the reflected signal.

An RF Mixer produces the sum and difference of the frequencies of these two input signals. The sum component is ignored, and the difference component (resulting from the Doppler shift) is used. This type of radar is commonly referred to as police radar.

The Doppler frequency, after processing, is fed to a radar scope or display unit. This display unit provides the velocity of the moving vehicle. The following formula can be used in police radar to calculate the velocity of the vehicle:

Velocity (in miles/hour) = 0.26 * (Doppler Shift in Hz) / (Microwave Frequency in GHz)

Summary

Overall, the Doppler radar system, grounded in the Doppler effect principle, serves as an essential tool in a wide range of applications, from meteorology to law enforcement. The ability to accurately measure frequency shifts enables precise monitoring and control in various environments. The application of Doppler radar in police radar systems exemplifies its practical utility, providing an effective means of maintaining road safety. As technology continues to evolve, the principles of Doppler radar will undoubtedly remain integral to advancements in radar systems and their applications.
