IoT Tutorial : Internet of Things basics, Architecture and Protocol Stack

The Internet of Things (IoT) is a revolutionary concept that refers to a network of physical devices, ranging from household appliances to industrial machinery. They are connected through the internet, sharing data to enable automation, monitoring, and control. By integrating embedded systems, sensors, software, and network connectivity, IoT devices can collect and exchange data, significantly enhancing efficiency in various industries and everyday life. This IoT tutorial covers Internet of Things basics, IoT architecture including Hardware and Software Components, protocol layers, Sensors, IoT wireless standards, Use Cases, advantages and disadvantages.

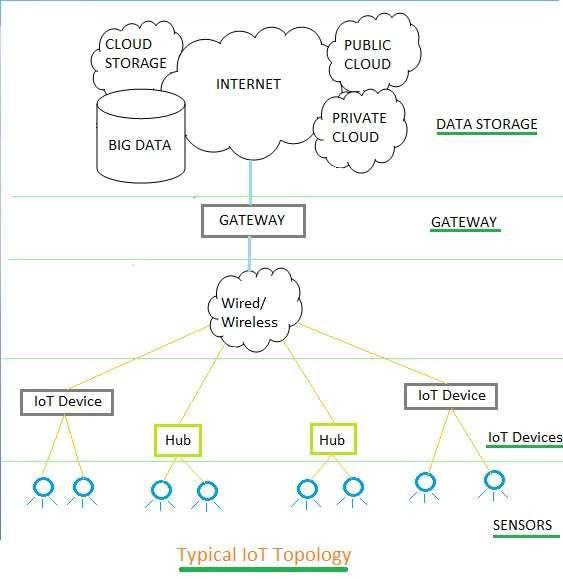

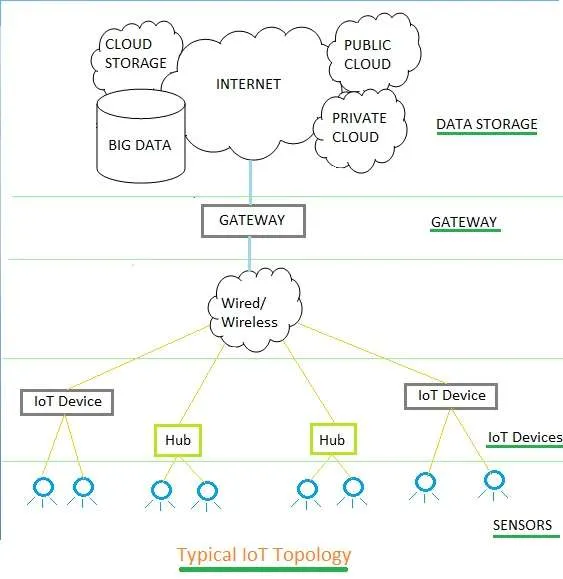

IoT Architecture

internet of things network architecture can be categorized into hardware and software components. Each of these plays a critical role in ensuring seamless connectivity, data collection, and real-time decision-making.
a. Hardware Components:
Sensors: Collect data from the environment or other systems.
Actuators: Perform physical actions based on instructions (e.g., turning on/off devices).
Edge Devices: Handle data collection, processing, and filtering before sending it to the cloud.
Gateways: Bridge the local IoT network and the internet or a centralized cloud system, translating protocols and managing data flow.

b. Software Components:
IoT Middleware: Enables communication between devices and applications, acting as an intermediary between the hardware and the cloud.
Cloud Platforms: Provide data storage, processing, and analysis capabilities, hosting IoT applications and allowing remote monitoring and control.
Application Software: Interfaces with users, enabling the visualization of IoT data and control of connected devices.

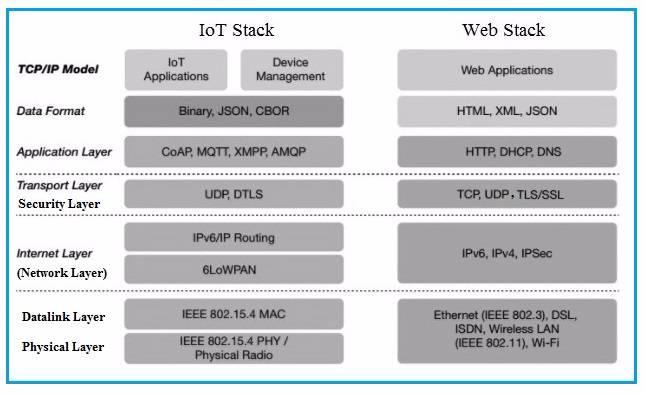

IoT System Protocol Layers

IoT follows a layered architecture that governs communication, data handling, and device management. The main IoT protocol layers are as follows.
1. Perception Layer: Involves data collection from the physical world through sensors.
2. Network Layer: Responsible for transmitting data to the cloud via wireless technologies (Wi-Fi, LTE, etc.).
3. Middleware Layer: Facilitates data management, security, and device communication.
4. Application Layer: Manages specific services and applications such as smart homes, smart cities, industrial automation, and healthcare systems.
➨Refer IoT vs Web stack for comparison between IoT and Web stack.

IoT Sensors

IoT sensors are vital in collecting data from their environments. The most common types of sensors are as follows. These sensors are used for environmental monitoring, machine diagnostics, asset tracking, and enhancing automation.
Temperature Sensors: Measure heat and cold levels (e.g., thermostats in smart homes).
Motion Sensors: Detect movement (e.g., security systems, smart lighting).
Proximity Sensors: Identify the presence of nearby objects (e.g., automatic doors).
Humidity Sensors: Monitor moisture levels (e.g., agricultural IoT).
Gas Sensors: Detect the presence of hazardous gases (e.g., safety applications).

IoT Wireless Technologies

IoT applications require different wireless technologies depending on whether they operate indoors or outdoors.
Indoor Wireless Technologies :
Wi-Fi: Widely used in home automation, providing high data rates and easy integration.
Bluetooth Low Energy (BLE): Ideal for short-range communication, commonly used in wearables and smart home devices.
Zigbee: Offers low power consumption and reliable communication in smart homes and industrial settings.
Outdoor Wireless Technologies:
LoRaWAN: Suitable for long-range communication with low power, making it ideal for agricultural monitoring and smart cities.
NB-IoT (Narrowband IoT): Offers excellent coverage in rural areas, used for smart metering and environmental monitoring.
5G: Provides low latency and high-speed data transmission, paving the way for real-time applications like autonomous vehicles and telemedicine.

Advantages and Disadvantages of IoT

Following are the benefits or advantages of IoT.
1. IoT enables real-time data collection, analysis, and automation, resulting in increased efficiency in various sectors, from industrial automation to smart homes.
2. IoT helps reduce operational costs by minimizing human intervention and optimizing resource use.
3. With continuous data streams, businesses and individuals can make informed, data-driven decisions.
4. IoT devices can be monitored and controlled remotely, offering convenience and flexibility.

Following are the drawbacks or limitations or disadvantages of IoT.
1. The interconnected nature of IoT makes it vulnerable to hacking and data breaches.
2. The integration of different devices, protocols, and systems can be challenging, leading to increased complexity in deployment.
3. IoT devices often collect sensitive personal data, raising concerns about data privacy and misuse.
4. Implementing IoT solutions can be expensive due to the need for sensors, networks, and infrastructure upgrades.

IoT Use Cases

• Smart Homes: Devices such as smart thermostats, lighting systems, and security cameras allow homeowners to automate and remotely manage household functions.
• Healthcare: Wearable devices track patient vitals in real time, enabling remote monitoring and telemedicine applications.
• Industrial IoT (IIoT): Factories use connected machinery to monitor production, predict maintenance, and optimize performance.
• Smart Cities: IoT-enabled systems manage traffic flow, waste disposal, and energy distribution, making urban living more efficient and sustainable.
• Agriculture: IoT-based systems monitor soil moisture, crop health, and weather conditions, helping farmers make better decisions.

Conclusion

The Internet of Things is transforming industries and everyday life by integrating devices, data and intelligence to create a more connected world. While challenges such as security and privacy remain, the potential benefits of IoT, ranging from increased efficiency to cost savings, are driving rapid adoption across multiple sectors. As IoT technology evolves, it is expected to play an even more significant role in shaping the future of smart cities, industries, healthcare, and beyond. This IoT tutorial is very useful for beginners who would like to start learning IoT fundamentals from basics.
