Zigbee: Key Features and Benefits of WPAN Technology

Introduction

Zigbee is a low-power, cost-efficient WPAN (Wireless Personal Area Network) technology designed for short-range communication in IoT and smart devices. With its robust, energy-saving features, Zigbee powers smart homes, industrial automation, and wireless sensor networks.

This guide uncovers the key features and benefits of Zigbee, emphasizing its pivotal role in the IoT ecosystem.

What is Zigbee?

Zigbee is a simple packet data protocol designed for lightweight wireless networks. The PHY/MAC layers are defined in IEEE 802.15.4 specifications. Channel access in Zigbee is via CSMA/CA.

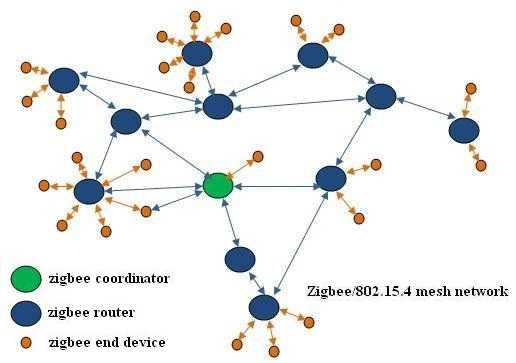

A Zigbee network is composed of a Zigbee coordinator, Zigbee routers, and Zigbee end devices.

Refer to the Zigbee tutorial for more.

Both mesh and star link types are supported between these components, depending on the device types. Zigbee products use very low power and are available at a very low cost. They are based on the LR-WPAN (low-rate wireless personal area network) standard, i.e., IEEE 802.15.4.

Zigbee products have protocol layers (PHY, MAC, network, security, application). The network, security, and application layers are defined by the Zigbee Alliance.

Zigbee operates at various frequency bands, viz. 868MHz, 915MHz, and 2.4 GHz. Out of these, 2.4 GHz-based Zigbee products are very popular around the world. Based on the antenna, transmitter output power, and frequency, it covers about 10 to 100 meters. Zigbee supports mesh topology.

Zigbee products deliver about 250Kbps of data rate. About 65000 devices are supported in a Zigbee network.

Key Features of Zigbee

• Low Power Consumption: Optimized for devices with limited power resources.
• Mesh Networking: Offers robust and self-healing network topology for extended coverage.
• Short-Range Communication: Effective within 10 to 100 meters, depending on the environment.
• High Scalability: Supports up to 65000 devices in a single network.
• Data Rate: Operates at a low data rate (20 to 250 kbps) suitable for sensor and control applications.
• Reliability and Security: Incorporates AES encryption for secure communication.

Zigbee Applications

Following are some of the use cases of Zigbee technology:

• Healthcare: For example, to monitor blood pressure, blood glucose levels, bed sensor controllers, weighing scales, etc.
• Smart Energy: For example, safe plugs, smart sockets, electricity consumption displays, thermostats, energy managers, etc.
• Home and Building Automation: For example, remote control of various home and building-related equipment.
• Closures: For example, smart locks, door sensors, occupancy sensors, etc.
• Home Appliances: For example, air conditioners, TVs, digital water meters, etc.
• Telecom Services: For example, routers/gateways, etc.

Advantages of Zigbee

Following are some of the benefits of Zigbee technology:

1. Ideal for IoT Applications: Perfect for smart homes, industrial automation, and health monitoring.
2. Cost-Effective: Low deployment and operational costs.
3. Energy Efficient: Prolongs battery life in connected devices.
4. Flexibility: Compatible with a variety of sensors and control systems.
5. Interoperability: Works well with other protocols in IoT ecosystems.

Conclusion

Zigbee is a cornerstone of low-power wireless communication, enabling smarter and more efficient IoT applications. Its unique features ensure seamless integration and scalability, making it indispensable for modern connected systems.
