Difference between Satellite and terrestrial communication based systems
This page compares satellite communication vs terrestrial communication and mentions difference between Satellite and terrestrial communication based systems.
Introduction : Satellite and terrestrial communication systems are used for transmission and reception of information, voice, data and video between users located in different places. Both the systems can offer global connectivity. In satellite communication, satellites are used as transport medium between transmitter and receiver parts. In terrestrial communication, ground infrastructures are used as transport medium which include copper cables, fiber optic cables, point to point microwave links and wireless cellular networks such as 3G, 4G LTE and 5G.
Microwave frequencies are used for wireless communication as they penetrate ionosphere. They get attenuated when used as ground waves as well as surface waves. Due to this reason microwave communication is mainly LOS (Line of Sight) based communication.
Microwave communication systems are mainly classified into satellite systems and terrestrial systems. Both of these systems require transmit part and receive part. The transmit system converts baseband signal to microwave signal. The receive system converts microwave signal to baseband signal. The baseband signal is multiplexed signal which carries number of individual low bandwidth signals such as voice, data and video.Multiplexing is done either using TDM or FDM.
Terrestrial Communication System
The terrestrial system offers transmission of voice, data and video signals over land based physical infrastructure. It uses various communication technologies and mediums which operate through the Earth's surface such as cables, fiber optics, ethernet and microwave wireless transmission systems. Terrestrial communication relies on fixed and mobile networks located on the ground unlike satellite communication systems which uses space based satellites to relay signals.
Terrestrial communication is widely used for various applications which include internet connectivity, television broadcasting, telephone services, data transmission and more. It forms the backbone of modern communication infrastructure which enables seamless connectivity and efficient data exchange in both residential and commercial environments. Terrestrial system consists of transmitter, transmission medium and receiver. Transmission medium can be wired or wireless. Wired communication can be carried out using copper cables, fiber optic cables, ethernet etc. Wireless communication uses radio frequency waves or microwave signals to transmit data without the need for physical cables.
Let us understand terrestrial microwave communication system using following block diagram. This microwave terrestrial links are used for long distance communication between fixed locations to connect remote offices or to transmit data across point to point (i.e. Line Of Sight) locations.
Microwave frequency gets attenuated due to buildings, trees, geographical locations, hence the ground distance (i.e. range) is limited from one part of earth to the other. In order to extend the range of terrestrial communication system, multi section relays or repeaters are used.

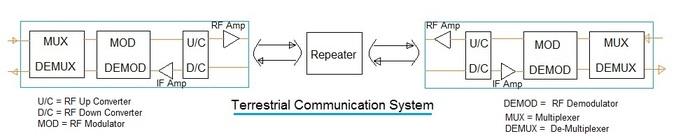

The figure-1 depicts terrestrial communication system with two stations and repeater module. Multiple repeaters are used between source and destination stations. Repeater receives the signal from one end and amplifies and retransmits the signal to the other end. Hence repeaters will make up for the RF losses introduced due to path pass. Typically repeaters are placed at the distance of about 32 to 80 Km.
Terrestrial system uses both analog and digital modulation types.
In analog systems, data information signals are frequency multiplexed(FDM) first
and later modulated (FM) and up converted
for the transmission using RF antenna.
In digital systems, data information signals are time multiplexed(TDM) to form baseband signal. This is later modulated (using either PM or PSK) and up converted for transmission using RF antenna.
Satellite Communication System

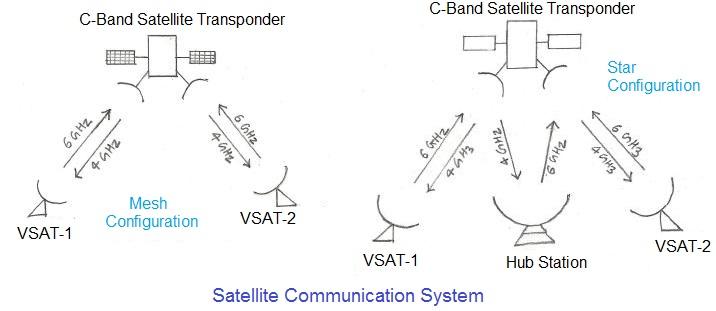

Figure-2 depicts satellite communication system. There are two modes of satellite based network viz. mesh and star. In general in this system, baseband information is transmitted at microwave carrier frequency using directional antenna from ground station (i.e. VSAT) to the satellite. Satellite receives the signal using on board antenna. It first shifts the received frequency to the other frequency band. Later it does amplification of the translated signal before being relayed over the large area of the earth.
As depicted in the figure 6GHz is used as uplink frequency and 4GHz is used as downlink frequency. Difference of 2GHz is carried out at the satellite transponder using LO frequency of value 2225 MHz. Here 6 GHz is the frequency range from 5.925 to 6.425 GHz and 4 GHz from 3.7 to 4.2 GHz. Refer function of satellite transponder.
Satellite frequencies are selected to overcome effects of ionosphere, absorption by gases and water vapour. Geo Stationary Satellite is placed at the height of 35800 Km. It travels at approx. speed of 11000 Km/Hour. Due to this fact, tracking of satellite is not required and fixed antenna at ground station is enough to establish RF link at all the times.
In mesh mode, VSAT1 and VSAT2 directly communicates using satellite. In star mode, VSAT1 and VSAT2 communicates using Satellite/Hub. Both configurations work at 6GHz(uplink) / 4GHz(downlink) bands. The other satellite system bands are Ku bands and works at 14GHz (Uplink) /11 GHz (Downlink) and 17/12 GHz frequency bands.
As mentioned in terrestrial system, repeater is used between source and destination stations. In satellite system, transponder is used to provide connectivity between source and destination stations. In general, satellite usually will have total 12 transponders each with 36 MHz bandwidth. The whole satellite band is usually about 500MHz.
Difference between Satellite System and Terrestrial System
There are a number of differences between satellite based and terrestrial wireless communications that affect design.
• Coverage area of a satellite based system is greater than that of a terrestrial based wireless communication system. A GEO satellite with one single antenna can cover
about 1/4th of the earth.
• Satellite communications link will have more degradations compare to terrestrial communication link but quality of transmission is usually quite good.
• In a satellite link delay from earth to satellite to earth is about 240ms while in terrestrial link it will be far less. But transmission cost in a satellite system is independent of the distance within the area of coverage of the satellite antenna, while in terrestrial system it varies based on the distance.
• In a satellite based system satellite EIRP and bandwidth is very vital parameters which need to be carefully designed at the initial stage of both satellite and earth station point of view.
• Very high bandwidths and very high data rates are achievable in a satellite based communication system.
• In case of satellite based systems all the earth stations/VSATs can receive their own transmissions and hence transmitted power should be carefully decided based on the RF link budget. But both transmitting and receiving frequencies are different and hence will not create much problem. Transmit reject filter should be good enough to overcome this problem.
Let us understand difference between satellite and terrestrial communication systems with respect to various comparison parameters and system aspects.
|Parameters||Satellite communication||Terrestrial communication|
|Communication medium||Satellites installed in space||Physical infrastructure on the ground (Cables, fiber optica, microwave links)|
|Coverage||Global coverage wide across (1/4)th of the earth||Limited to specific geographical regions or within range of physical infrastructure|
|Latency||Higher as signals travel longer distances (120 ms from earth to satellite and 120ms from satellite to earth back)||Lower as signals travel shorter distances|
|Susceptibilty to Signal interference||Prone to atmospheric conditions and signal blockage||Vulnerable to physical disruptions and electromagnetic interference|
|Mobility||Suitable for remote and mobile communication||Mostly fixed and limited mobility|
|Data speed||Usually lower compared to some terrestrial options||Higher especially using advanced fiber optic networks|
|Reliability||Susceptible to space related issues such as solar radiation||More reliable in stable environments with periodic maintenance|
|Examples||GPS, satellite TV, Satellite internet, Satellite telephony||Cellular networks, wifi, ethernet, fiber optic cables|
Conclusion The satellite and terrestrial communication are used together to leverage benefits of both the systems. This hybrid mode create robust and versatile communication networks which meet diverse needs and provide reliable connectivity in various scenarios across the globe.
