Coaxial to Waveguide Adapter types, applications and Benefits
Coaxial to waveguide adapters serve as critical components in RF systems, enabling seamless transition between coaxial cables and waveguides. They are widely used in communication, radar, and testing applications where efficient signal transfer and impedance matching are essential. This article discusses their types, working, benefits and key applications, offering insights into their importance in modern RF systems.
What is a Coaxial to Waveguide Adapter?
Adapter used to interface coaxial cable with waveguide is referred as coaxial to waveguide adapter. The rectangular waveguide are fed by means of coaxial probe pierced into the wall of the waveguide. The coaxial probe is connected to source of EM waves. To generate TE10 mode, probe is inserted perpendicular or parallel to the maximum E field.
The probe depth(d) in waveguide is kept smaller so that constant current on the probe will radiate EM field inside the waveguide structure. Probe diameter is also kept smaller to avoid generation of higher order modes.

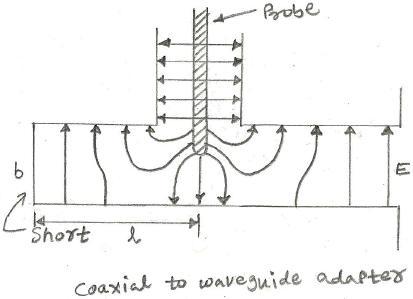

As shown in the figure E fields are perpendicular in both coaxial cable and waveguide structure. To have radiation only in one direction, short circuit is placed at a distance ('l') equal to quarter wavelength in the backward direction. As shown in the figure, both 'd' and 'l' are chosen such that input impedance of the probe can be made pure resistive equal to characteristic impedance of the coaxial line.
Types of Coaxial to Waveguide Adapters
1. Straight Adapters :
• Connect coaxial cables directly to waveguides.
• Offer minimal signal deviation.
• Commonly used for straightforward connections in laboratory and testing setups.
2. Right Angle Adapters :
• Feature a 90-degree connection angle for applications with spatial constraints.
• Ideal for compact setups requiring flexible connections.
3. Custom Tuned Adapters :
• Designed for specific frequency ranges and applications.
• Provide optimized performance for unique system requirements.
4. Double Ridge Adapters :
• Allow for broader bandwidth support compared to standard single-ridge designs.
• Suitable for systems requiring wide frequency coverage.
Benefits of Coaxial to Waveguide Adapters
1. Enable seamless transition of signals from coaxial to waveguide formats, ensuring minimal loss.
2. Maintain system impedance compatibility, reducing reflection and enhancing signal quality.
3. Support diverse frequency bands, making them versatile for numerous RF and microwave applications.
4. Provide an efficient solution for connecting different transmission mediums without consuming excessive space.
5. Built from robust materials to withstand high-frequency operation and environmental challenges.
Conclusion
Coaxial to waveguide adapters bridge the gap between two vital transmission mediums, ensuring efficient signal transfer and system compatibility. Their versatility and precision make them indispensable in various RF and microwave applications. By understanding their working principles and types, you can choose the right adapter for your specific needs and achieve optimal system performance.
