Understanding TEM Waves and Waveguide Modes

In the field of electromagnetic wave propagation, TEM waves (Transverse Electromagnetic waves) hold significant importance, particularly in waveguides and transmission lines.

TEM waves are characterized by having electric and magnetic fields that are perpendicular to each other and to the direction of wave propagation. This unique property makes them essential in various RF, microwave, and communication systems. In this guide, we will delve into the concept of TEM waves, their characteristics, and how they propagate within waveguides.

As we know, electrical signals are propagated from one place to the other in various forms as mentioned below:

• in the form of current/voltage through conductors (of transmission lines)
• in the form of guided electromagnetic waves through waveguides/fiber optic
• in the form of radiated electromagnetic waves through space using antennas

Electromagnetic wave propagation mainly depends on the medium between transmitting and receiving ends. The electrical parameters of the medium which will have an effect on the EM waves are $\sigma$, $\epsilon$, and $\mu$.

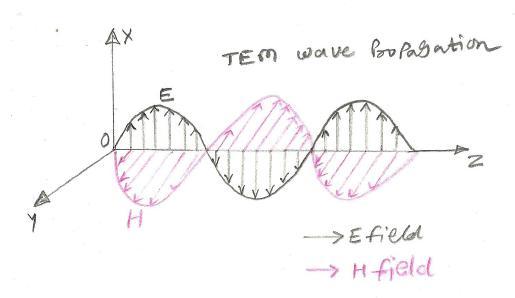

In free space, at a large distance away from the source, propagation takes place in Transverse Electromagnetic mode (TEM mode). The same is depicted in the figure. In TEM mode, E and H fields are orthogonal to each other, and both are perpendicular to the direction of propagation.

Key features of TEM waves

1. Transverse Fields: Both E and H lie in the plane perpendicular to the wave’s travel direction. In other words, neither the electric field nor the magnetic field has a component in the direction of propagation.

2. Applications: TEM waves commonly exist in transmission lines such as coaxial cables, parallel plates, or twin-lead wires.

3. Field Distribution: For TEM waves, field lines are uniform and symmetric, making them ideal for lossless or low-loss signal transmission.

TEM waves cannot propagate in hollow waveguides because these structures require at least one field component (electric or magnetic) along the propagation direction.

What is a Waveguide Mode?

A waveguide mode refers to the pattern of electromagnetic fields that propagate through a waveguide, which is a structure designed to guide waves such as microwaves or optical waves. Unlike TEM waves, waveguide modes are categorized based on the configuration of their electric and magnetic fields.

Types of waveguide modes

1. TE Mode (Transverse Electric): The electric field has no component along the direction of propagation ($E_z = 0$). Example: TE10 mode in rectangular waveguides.

2. TM Mode (Transverse Magnetic): The magnetic field has no component along the direction of propagation ($H_z = 0$).

3. Hybrid Modes: Both $E_z$ and $H_z$ exist, combining characteristics of TE and TM modes.

Key Differences Between TEM and Waveguide Modes

Conclusion

TEM waves play a crucial role in modern communication and signal transmission technologies. Their transverse nature and compatibility with waveguides make them indispensable in RF and microwave engineering. Understanding TEM wave properties and waveguide modes equips engineers and researchers to design more efficient systems.
