WCDMA PCCPCH: Primary Common Control Physical Channel Explained

This page describes the PCCPCH or Primary Common Control Physical Channel with respect to a WCDMA/UMTS system. The Primary CCPCH is a fixed-rate (30 kbps, SF=256) downlink physical channel used to carry the BCH transport channel.

The PCCPCH channel is a fundamental downlink physical channel used in WCDMA. It plays crucial role in broadcasting essential system information to all User Equipments (UEs) within a cell. This enables them to access and synchronize with the network.

Key characteristics of the PCCPCH

  • Channel coding: CRC, convolutional code
  • Symbol rate: 30 ksps
  • Spreading factor: 256
  • Modulation: QPSK
  • Spreading: predefined code (Cch,256,1)
  • Scrambling: Gold sequence - 3.84 Mcps, 10 ms periodic, primary scrambling code of the sector
  • Power control: Not supported
  • Pilot symbol: Included
  • TFCI bits: Not included

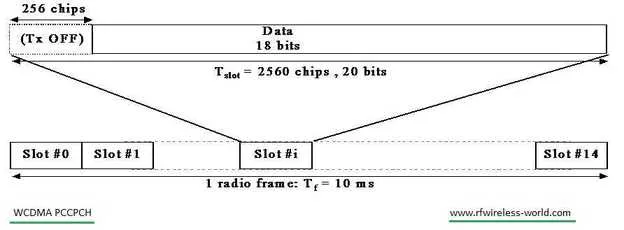

WCDMA PCCPCH

Key Functions of P-CCPCH

  1. Broadcasting System Information: Carries BCH transport channel which includes critical information such as cell identity, network parameters, and access restrictions. It helps UE to understand network configuration and its capabilities before initiating communication.​

  2. Synchronization Assistance: Aligned with the P-SCH and S-SCH, P-CCPCH aids UEs to obtain time synchronization and frequency synchronization with the network.

  3. Cell Identification: It uses predefined channelization code and scrambling code. P-CCPCH helps UEs identify and distinguish between different cells. This is very useful in overlapping coverage regions.​

  4. Network Access Facilitation: With the help of system informations and synchronization details, P-CCPCH enables UEs to initiate access procedures, such as RRC connection establishment and PDP context activation.

Conclusion

The P-CCPCH is indispensable for the initial access and ongoing operation of UEs within a WCDMA network.
