What is the difference between RF and Microwave?

The comparison between RF (Radio Frequency) and Microwave technologies often surfaces when discussing frequency spectrum management. While RF covers a broad spectrum from 3 kHz to 300 GHz, Microwave is a subset within this range, typically spanning from 300 MHz to 300 GHz.

What is RF?

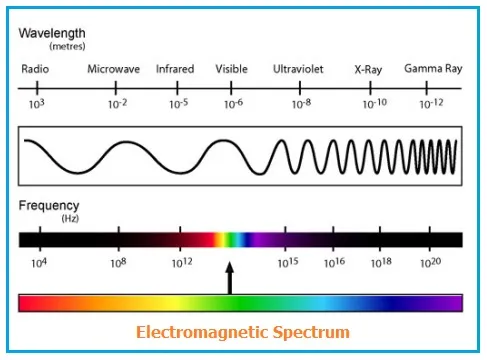

RF is the abbreviation for ‘Radio Frequency’ signal. RF (Radio Frequency) EM spectrum has been classified into eight regions based on radiation intensity. The major divisions are into radio spectrum and optical spectrum. Radio spectrum covers radio waves, microwaves and terahertz radiations. Optical spectrum covers infrared, visible, ultra violet, X-rays and gamma radiations. Radio waves range from 3 KHz to 300 GHz. Hence RF starts from much lower than the microwave starting range as mentioned below. In radio waves antenna wavelength varies from hundreds of meters to about 1 millimeter.

Characteristics of RF

• Covers a very wide frequency spectrum.
• Can be transmitted through free space or guided media.
• Lower frequency RF waves can travel long distances by ground wave or sky wave propagation.
• Circuit design is generally simpler at lower RF frequencies.
• Widely used for both analog and digital communication.

What is Microwave?

The term “micro” signifies something very small, essentially a millionth part of a unit. The term “Microwave” is used to identify EM waves above 1 GHz in frequency because of the short physical wavelength of these frequencies. Microwaves are essentially radio frequency (RF) waves. However, a difference between RF and microwave exists as far as operating range and applications are concerned. Microwaves range from 300MHz to 300GHz. Most microwave applications range up to 100 GHz.

Characteristics of Microwave

• Short wavelengths (approximately 30 cm to 1 mm)
• High antenna gain and directivity
• Large Bandwidth
• It travels by LOS (Line Of Sight)
• Low noise level in the 1-10 GHz range, allowing for the easy detection of very low signals at the receiver
• Microwaves penetrate the ionosphere with less attenuation and distortion

What is the difference Between RF and Microwave?

Although engineers often use the terms RF and Microwave interchangeably, there are slight distinctions between them, as highlighted below. While the starting range of microwaves can be ambiguous, it generally starts from 1 GHz and spans up to 1 Tera-Hertz. This corresponds to wavelengths ranging from 30 cm to 0.3 mm.

Specifications	RF	Microwave
Frequency range (Hz)	3 KHz to 300 GHz	300 MHz to 300 GHz (Subset of RF)
Wavelength	Longer wavelength, 1 mm to 100 Km	Shorter wavelengths, 1 mm to 1 m
Signal Behavior	Longer range, less prone to attenuation	Shorter range, more susceptible to losses
Propagation	Easily propagates through obstacles like walls	Requires line of sight; higher attenuation
Power Levels	Lower power for communication systems	Higher power for applications like radar
Transmission Medium	Works well with both guided and unguided media	Primarily guided media (e.g., waveguides)
Components	RF amplifiers, antennas, modulators	Waveguides, magnetrons, circulators
Bandwidth	Typically narrower	Wider bandwidth, supports high data rates
Energy Density	Lower energy density	Higher energy density
Applications	Mobile, AM/FM radio, television	radar, satellite and space communication

Conclusion

The primary difference between RF and Microwave lies in their frequency ranges and applications. RF encompasses a broader spectrum, including microwaves, and is widely used for long range, low power communication. Microwaves are a higher frequency subset of RF, suitable for short range, high data rate applications like radar and satellite systems.
