LoRaWAN Data Rate and EIRP Tx Power in INDIA bands

This page describes LoRaWAN Data Rate and EIRP Transmit (Tx) Power used in INDIA for different LoRaWAN frequency channels (or RF Band).

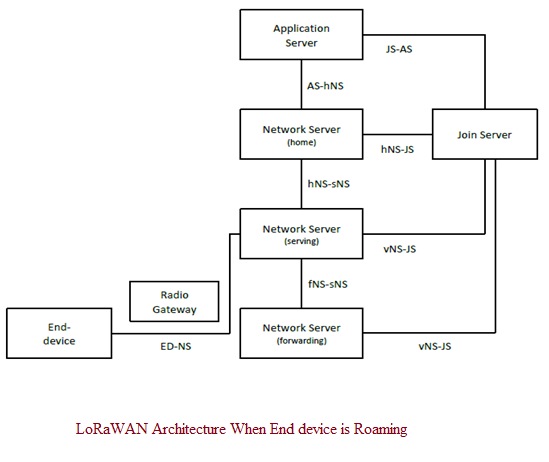

LoRaWAN network consists of end devices, gateway and network servers, Join server and application server as shown.

LoRaWAN interfaces between its elements

LoRa alliance has published specifications of the LoRaWAN system. It is also managing and maintaining the LoRaWAN specifications.

What is LoraWAN frequency used in INDIA ?

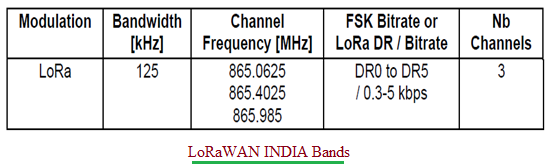

LoRaWAN INDIA Frequency Bands

The table mentions LoRaWAN parameters used in INDIA.
It uses LoRa modulation, Bandwidth (125 KHz), Frequency channels viz. 865.0625 MHz, 865.4025 MHz, 865.985 MHz, Bit rates from 0.3 to 5 Kbps and three frequency channels.

LoRaWAN Data rates

Following table mentions different data rate used in LoRaWAN.

LoRaWAN data rates

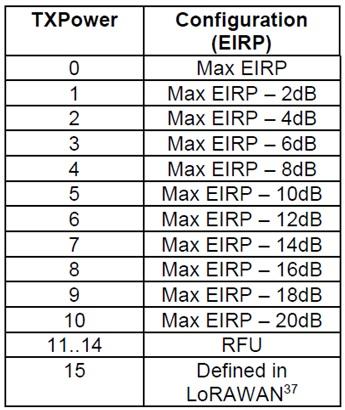

LoRaWAN EIRP or Transmit power

Following table mentions EIRP (i.e. Tx Power) used in LoRaWAN.

LoRaWAN EIRP Tx Power

Reference: RP002-1.0.0 LoRaWAN Regional Parameters, www.lora-alliance.org.
