Difference between cloud computing and fog computing | compare cloud computing vs fog computing

This page compares cloud computing vs fog computing and mentions difference between cloud computing and fog computing. The tabular difference between cloud and fog computing is also mentioned.

We have already seen cloud computing used for processing, analysis and storage of the data from client devices. Due to evolution of IoT (Internet of things) devices, huge amount of data are generated daily. Moreover it is expected to have about 50 billion IoT devices to be online by the year 2020. Present cloud computing model is not capable to handle huge bandwidth data due to its latency, volume and bandwidth requirements. The fog computing is developed to address all the issues faced by cloud computing model.

What is Cloud Computing?

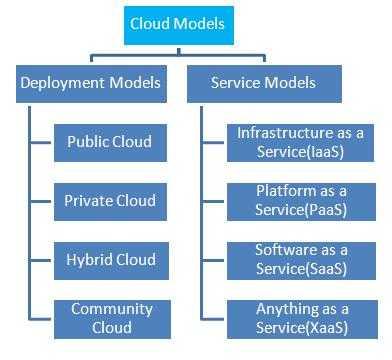

cloud computing models

• Cloud computing is a model to enable convenient, on demand network access to shared pool of configurable resources e.g. servers, network infrastructure, storage, applications etc.
• Cloud computing has few essential features service models and deployment models.
• It provides services which can be accessed from any place and at any time.
• In cloud computing fog layer does not exist. All the end devices directly communicate with the cloud servers and cloud storage devices.

• Cloud deployment model represents specific type of cloud environment, which is primarily distinguished by ownership, size and access. Based on this, there are various models viz. public cloud, private cloud, hybrid cloud, community cloud, multi-cloud, distributed cloud etc. Cloud computing service models include IaaS, PaaS and SaaS.
• Public cloud is publicly accessible cloud environment owned by a third party cloud provider. Examples are AWS (Amazon Web Services), Microsoft Azure, Google Compute Engine etc.
• A private cloud is owned by single organization. Private clouds enable a organization to use cloud computing technology as means of centralized access to IT resources.
• Refer Cloud computing tutorial >> for more information.

What is Fog Computing?

Fog computing architecture

Fog extends the cloud close to the devices which produce or generate the data. The devices are called fog nodes. The device with network connection, storage and computing feature is known as fog node. Examples include switches, controllers, routers, servers, cameras and so on. The fog computing is also called edge computing.

Fog computing is maily used for following.
• To analyze most time sensitive data at the edge of the network close to where they are generated rather than sending huge amount of data to the cloud. It acts on IoT data in milliseconds.
• To send selected data to the cloud for analysis and long term storage.
• To provide services to large number of devices spread across large geographical region.
• To address devices subjected to extreme conditions.
• Refer Fog computing tutorial >> for more information.

Difference between cloud computing and fog computing

Following table mentions difference between cloud computing and fog computing.

Requirements Cloud Computing Fog Computing
Latency High Low
Delay Jitter High Very Low
Location of Service Within the Internet At the edge of the local network
Distance between client and server Multiple hops One hope
Security Undefined Can be defined
Attack on data enroute High probability Very low probability
Location awareness No Yes
Geo-distribution Centralized Distributed
No. of server nodes Few Very large
Support for mobility Limited Supported
Real time interactions Supported Supported
Type of last mile connectivity Leased Line Wireless

Table Reference: https://blogs.cisco.com/

The other major difference between cloud computing and fog computing are as follows.
➤Cloud computing: Data and applications are processed in a cloud, which is time consuming task for large data.
Fog computing: Rather than presenting and working from a centralized cloud, fog operates on network edge. So it consumes less time.
➤Cloud computing: Problem of bandwidth, as a result of sending every bit of data over cloud channels.
Fog computing: Less demand for bandwidth, as every bit of data's were aggregated at certain access points instead of sending over cloud channels.
➤Cloud computing: Slow response time and scalability problems as a result of depending servers which are located at remote places.
Fog computing: By setting small servers called edge servers in visibility of users, it is possible for a fog computing platform to avoid response time and scalability issues.
