10 Advantages of SCADA System | disadvantages of SCADA System

SCADA (Supervisory Control and Data Acquisition) systems play a crucial role in various industries including power systems, water supply and the electrical domain. Let us explore advantages and disadvantages of SCADA System.

What is SCADA ?

The full form of SCADA is Supervisory Control and Data Acquisition. As the name suggests it is not the fully control system. It focuses on supervisory level.

Following are the functions of SCADA system in general.
• It is computer system which collects and analyzes real time data with the help of sensors.
• The system is used for monitoring and control operations of a plant or equipments.

scada basics

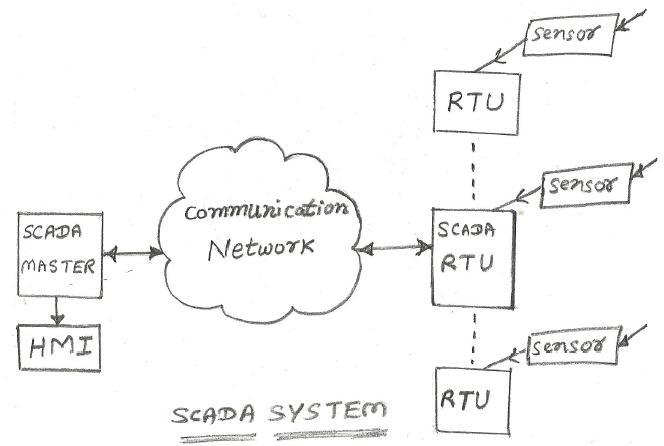

The SCADA system is composed of three main systems viz. MTU (Master Terminal Unit), RTU (Remote Terminal Units) & Human Machine Interface (HMI). Sensors are installed at various locations spread across the earth for various functions. Refer SCADA basic tutorial>>.

SCADA Applications

SCADA (Supervisory Control and Data Acquisition) systems play a crucial role in various industries, including power systems, water supply and the electrical domain. Following are some of the key uses and applications of SCADA in these domains.
SCADA in power systems : It is used for grid monitoring and control in real time, helps in load management, fault detection and analysis etc. Utilities use SCADA to monitor health of equipments such as transformers, circuit breakers and generators. SCADA helps utilities to optimize power generation and distribution to maximize energy efficiency and reduce operational costs.
SCADA in Water Supply : SCADA systems monitor water treatment plants, reservoirs and distribution networks remotely. It also helps in leak detection, control chemical dosing and treatment processes, manage water levels, control pumps and valves etc.
SCADA in Electrical Domain : SCADA systems are used in commercial and residential buildings to manage HVAC systems, lighting, security etc. It helps to monitor and control renewable energy sources such as wind farms and solar power plants to maximize energy production and grid integration. It is also used in manufacturing and industrial processes, data centers, traffic signal control, toll collection, monitoring of road and rail infrastructure to optimize traffic flow and safety.

Benefits or advantages of SCADA

Following are the benefits or advantages of SCADA:
1. The system provide facility to store large amount of data.
2. The data can be displayed in various formats as per user requirements.
3. It provides interface to connect thousands of sensors across wide region for various monitoring and controlling operations.
4. It is possible to obtain real data simulations with the help of operators.
5. Many types of data can be gathered from RTUs (Remote Terminal Units) connected with the master unit.
6. With the advanced protocols and application softwares, the data can be monitored from anywhere and not just from local site.
7. The redundancy of units are incorporated in the SCADA system in order to have backup in the event of faults or failures. This makes system more robust.
8. It is fast in obtaining response.
9. It is scalable and flexible in adding additional resources.
10. It is used in wide industries and departments including telecommunications, energy, transportation, oil & gas, water, military, meteorological etc.

Drawbacks or disadvantages of SCADA

Following are the disadvantages of SCADA:
1. PLC based SCADA system is complex in terms of hardware units and dependent modules.
2. As the system is complex, it requires skilled operators, analysts and programmers to maintain SCADA system. Moreover operators and technicians require training to effectively use and maintain SCADA systems.
3. Installation costs are higher.
4. The system increases unemployment rates.
5. The system supports use of restricted softwares and hardware equipments.
6. Once SCADA systems become more connected and digitized, they are vulnerable to cyberattacks if not secured properly.
7. Large amount of data generated by SCADA systems can overwhelm operators sometimes. This makes it challenging to identify critical issues.
8. Reliance on technology means systems failures may have significant consequences.
9. Regular maintenance and updates are necessary to keep SCADA systems operational and secure. This is time consuming and costly.
10. Inadequate redundancy can lead to system failures if critical component or communication link fails.

Conclusion : In summary, SCADA systems are essential tools in modern power systems, offering real-time monitoring, control and data analysis capabilities that enhance grid reliability, efficiency, and overall performance. They contribute significantly to the effective management and optimization of power generation, transmission and distribution.
