DHCP: Advantages and Disadvantages

networking dhcp ip address network management protocol

This page covers the advantages and disadvantages of DHCP (Dynamic Host Configuration Protocol). It outlines DHCP benefits and drawbacks.

What is DHCP? (Introduction)

  • DHCP stands for Dynamic Host Configuration Protocol.
  • It uses a client-server architecture, with DHCP servers and DHCP clients.
  • DHCP clients send requests to a DHCP server when they open a web browser or connect to a network.
  • Upon receiving the request, the DHCP server replies with the necessary network information to the requesting DHCP client.
  • Function: Dynamically assigns IP addresses to requesting hosts or clients on demand.
  • It uses UDP port 67 as the destination server port and port 68 for the client.

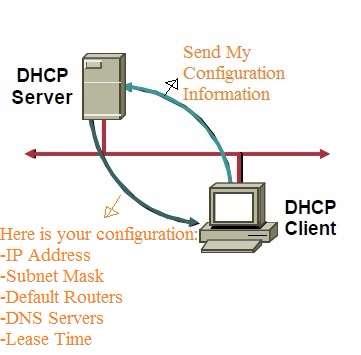

How DHCP works

DHCP protocol runs over UDP and is defined in RFC 2131. It helps in configuring hosts to automatically obtain IP addresses in the TCP/IP properties of the NIC (Network Interface Card) configuration window.

Benefits or Advantages of DHCP

Following are the benefits or advantages of DHCP:

  • DHCP is easy to implement and automatically assigns IP addresses to requesting clients. This significantly reduces the manual configuration time for IP addresses.
  • Implementation doesn’t require any additional costs.
  • Duplicate or invalid IP address assignments are prevented, eliminating IP address conflicts.
  • It simplifies network administration.
  • It supports multiple scopes, e.g., multicast scope, super scope, etc.
  • Mobile users greatly benefit as valid configuration parameters are automatically obtained from the new network they connect to.

Drawbacks or Disadvantages of DHCP

Following are the disadvantages of DHCP:

  • A DHCP server can be a single point of failure in networks with only one configured DHCP server. If the server goes down, new clients cannot obtain IP addresses, and clients needing to renew their leases will lose connectivity.
  • DHCP packets cannot travel across routers, so a relay agent is necessary to have a DHCP server handle all leases on both network segments. Relay agents receive broadcast DHCP packets and forward them as unicast packets to the DHCP server. The relay agent must be configured with the IP address of the DHCP server.
  • Security: DHCP servers lack a secure mechanism for authenticating clients. This vulnerability allows unauthorized access to IP addresses by presenting credentials, such as client identifiers, belonging to other DHCP clients. This can lead to IP address spoofing and network access violations.
  • The machine name does not change when a new IP address is assigned. This can make network troubleshooting and administration more difficult.
  • Clients cannot access the network in the absence of the DHCP server. This can cause significant disruptions if the server is unavailable.
