# What is Cascaded Integrated Comb Filter (CIC filter)?

A Cascaded Integrated Comb (CIC) filter is a type of digital filter commonly used in digital signal processing (DSP) applications for decimation or interpolation. CIC filters are particularly efficient and are often employed in applications where high-speed and low-complexity filtering is required, such as in digital communication systems and digital audio processing.

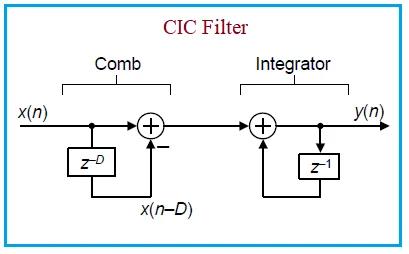

The CIC filter structure consists of a cascade of integrators and comb filters. The basic building blocks of a CIC filter are the integrator and the comb filter. The integrator is a simple accumulator that sums up its input over time, while the comb filter is a delay line with regularly spaced taps.

The CIC filter operates in two main stages:

• Integration Stage (Combining): The input signal passes through a series of integrators,
which effectively perform cumulative summation over a number of input samples. This stage helps to
increase the effective resolution of the filter.

• Comb Stage (Downsampling or Upsampling): After the integration stage, the signal goes through a comb filter,
which essentially performs a decimation (downsampling) or interpolation (upsampling) operation.
The comb filter has regularly spaced taps, and it selects specific samples based on the decimation or interpolation factor.

## Applications of CIC filter

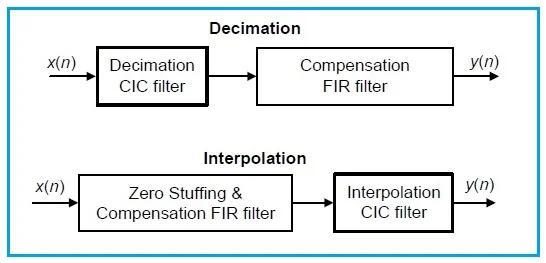

Cascaded Integrated Comb (CIC) filters find applications in various digital signal processing (DSP) and communication systems where efficient decimation or interpolation is required. Some common applications are as follows.

• CIC filters are often used in digital communication systems, such as software-defined radios (SDRs), to process signals efficiently during both transmission and reception.

• CIC filters may be employed for channelization, filtering, and rate adaptation in wireless systems such as
GSM, LTE, 5G etc.

• CIC filters are used in digital audio processing applications, such as sample rate conversion in audio codecs and digital audio workstations.

• CIC filters can be employed for decimation or interpolation in radar signal processing to meet these requirements.

• In medical imaging applications, where efficient processing of large datasets is crucial, CIC filters may be used for downsampling or upsampling tasks.

• CIC filters are used in instrumentation and measurement systems for filtering and adjusting the sample rates of acquired signals.

• CIC filters are employed in digital television systems for filtering and rate conversion during the processing of audio and video signals.

• In systems that involve sensors and data acquisition, CIC filters can be used for efficient filtering and sample rate adjustment.

• Other applications : Software-Defined Radios (SDRs), Digital Down Converters (DDCs), Digital Up Converters (DUCs) etc.

## CIC filter design

Designing a Cascaded Integrated Comb (CIC) filter involves determining parameters such as the filter order, the number of stages, and the decimation or interpolation factor. Here are some guidelines for the design of CIC filters.

Step 1:Decide whether the filter will be used for decimation (downsampling) or interpolation (upsampling). Choose the decimation or interpolation factor (R), which represents the rate at which samples are selected or inserted.

Step 2:Calculate Total filter order (N) from following equation. N = M * (R-1) + D,
Where,

D = differential delay, M= Number of stages, R= Delay

Step 3:Choose the number of cascaded stages (M) based on the desired filtering characteristics.
More stages better is the filtering but at the cost of more delay.

Step 4: Determine the Differential Delay (D),

For decimation, D =1 is common choice

For interpolation, D = R -1 is often used.

Step 5: Calculate the Comb Filter Taps: or each stage, calculate the number of taps in the comb section. The comb filter has a delay line with regularly spaced taps.

The number of comb filter taps, L = R * M

Step 6 : Choose the length of the integrator section (N - D) for each stage.
The integrator section is responsible for increasing the effective resolution of the filter.

Step 7 : Implement the CIC filter using the determined parameters in hardware or software.

Step 8 : Analyze the frequency response of the CIC filter to ensure it meets the desired specifications.

Depending on the application, optimize the CIC filter design for hardware or software implementation, considering factors like computational efficiency and resource constraints.

## Advantages of Cascaded Integrated Comb Filter

The benefits or **advantages of CIC filters** are as follows.

1. CIC filters are computationally efficient and can achieve a high degree of filtering with relatively simple operations.

2. They have low latency, making them suitable for real-time processing applications.

3. CIC filters are often used in high-speed digital signal processing applications due to their efficiency.

4. The structure of CIC filters is simple and lends itself well to hardware implementations.

However, CIC filters also have some **limitations**, such as a relatively slow roll-off in the frequency domain,
which may be a consideration in applications where sharp transition bands are required.

**Conclusion**: In summary, CIC filters are preferred for various applications due to their simplicity,
low computational requirements, and efficiency in handling decimation and interpolation tasks.
They provide a good balance between performance and computational resources, making them suitable for
real-time and high-speed signal processing applications.
