What is an RF Switch ?

An RF (Radio frequency) switch is an electronic component used to route RF signals between different paths or devices. They are essential for managing flow of RF signals in complex systems. RF switches are commonly used in various applications such as radar systems, wireless communication systems, satellite communication and more.

RF switches work by controlling connection between different input and output ports. They can switch between different paths to either connect or disconnect RF signals.

We know that switches are used in electrical, mechanical, electronics and communication industries for switching of signals. The signals are in different frequency bands starting from DC to KHz to MHz to GHz. Based on number of input and output requirements, RF switches under various topologies are used such as 4x1 MUX, 8x1 MUX, SPST, SPDT, SP3T etc.

RF Switches are selected for any particular application based on number of parameters viz. operating frequency, isolation, insertion loss, return loss, switching time, switching speed, handling power, life cycle, number of ports etc. Hence switches are used for various purposes such as signal routing, frequency selection, signal isolation, impedance matching and more.

Types of RF switches based on their construction, design and components used are as follows.
• Electromechanical : This type uses physical mechanical components to physically connect or disconnect RF paths.
• Solid state : This type of switches are semiconductor based and do not have moving parts.
• PIN diode : It utilizes variable resistance of PIN diode when biased with different voltage levels.
• MEMS type : It uses micro-mechanical components to switch RF paths. It is miniaturized device which offers high isolation, low insertion loss and rapid switching speeds.
• FET based : It uses FET transistor to control RF signal path.

RF Switch applications or uses

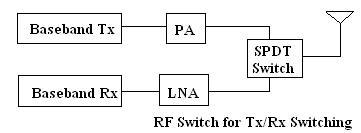

➨The most common applications of RF switch is in using single RF antenna for transmission and reception. This is shown in figure-1 below.

rf switch

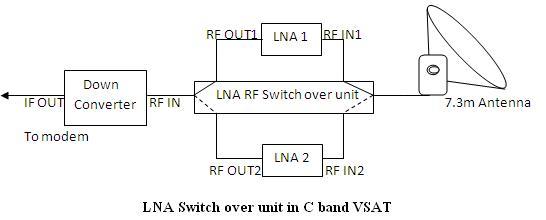

➨The other application of RF switches are in switch over units used in VSAT or Hub station. The typical switch over units are modem switch over (SWO) units , RF up converter/down converter SWO units, LNA switch over units etc. As shown there are two LNAs in the circuit LNA1 (in circuit mode) and LNA2 (hot standby mode). In case of failure of LNA1, LNA SWO unit brings LNA2 in the circuit and vice versa.

rf switch

➨MEMS RF Switches are used in space based communication systems. MEMS switches are popular for their high isolation, low insertion loss, low power, high linearity, smaller size and light weight.
➨Coaxial switches and waveguide switches are used in avionic industry for switching operations in aircraft, airborne and radar systems.
➨RF switches are also used in test and measurement of various RF and baseband parameters in automation test suits.
➨They are also used during pre-compliance testing and production testing.
➨The other applications include cellular base stations, automotive systems, medical devices, consumer electronics, IoT (Internet of Things), Radio broadcasting, Television (TV) broadcasting, military communication and so on. test

These are just a few examples of the many RF switch applications. Their versatility and ability to manage RF signal paths make them essential components in modern RF, microwave, wireless and communication technologies.
