5G NR Slot Formats | 5G NR slot format combination

This page mentions 5G NR Slot Formats tables. It describes 5G NR slot format combination structures defined in 5G NR 3GPP TS 38.200 series standards

5G NR Slot Formats

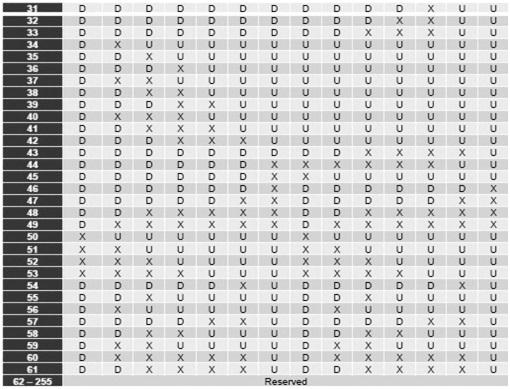

5G NR slot formats-1 5G NR slot formats-2

Abbreviations used in the table.
D: Downlink Symbol
X: Flexible Symbol
U: Uplink Symbol

5G NR Reference document

• 3GPP TS 38.200 series of documents
