LCR Meter: Working Principle, Advantages, and Disadvantages

An LCR meter, short for Inductance (L), Capacitance (C), and Resistance (R) meter, is a specialized electronic instrument used to measure the inductance, capacitance, and resistance of electronic components such as capacitors, inductors, and resistors. These measurements are crucial in various fields of electronics, including circuit design, quality control, and troubleshooting.

Let’s explore the types of LCR meters before diving into the LCR meter working principle, its advantages, disadvantages, and applications.

What is an LCR Meter and its Types?

As mentioned, in “LCR,” the letters L, C, and R stand for inductance, capacitance, and resistance, respectively. The device which measures these parameters is known as an LCR meter. A digital LCR meter measures the current (I) through the Device Under Test (DUT) and the voltage (V) across the DUT, as well as the phase angle between the measured I and V. From these measured parameters, useful impedance parameters are calculated.

LCR meters can also be used to measure impedance, which is later converted to L, C, or R for display. There are two main types of LCR meters: benchtop and handheld.

• Benchtop LCR meters: These are developed for bench applications and are typically kept at a fixed location without much movement.
• Handheld LCR meters: These are developed for portable applications and can be moved around for test and measurement purposes. Handheld LCR meters are lightweight and battery-powered. They usually have a USB port to transfer data to a PC/Laptop. They typically provide measurements of inductance and AC resistance with an accuracy between 0.1% to 0.2%.

Benchtop LCR meters offer additional features compared to handheld types, such as programmable frequency settings and higher measurement accuracy (around 0.01%). They provide advanced measurement capabilities such as DC bias current and voltage, sweep functions, etc. This type of LCR meter is used for AC calibration of L, C, and R.

Measurements are typically performed at frequencies such as 100Hz, 120Hz, 1kHz, and 10kHz. Based on display formats, LCR meter types are further categorized into analog and digital. Analog types are cheaper compared to digital types as they are made of basic discrete components. Digital types are costlier but are more accurate compared to their analog counterparts.

LCR Meter Working Principle | How an LCR Meter Works

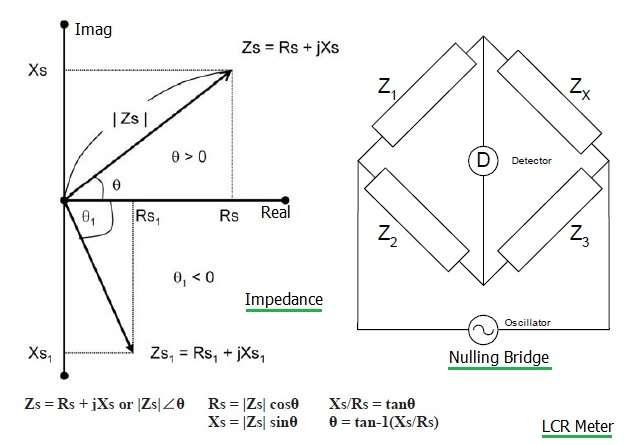

Before we understand how an LCR meter works, let’s understand the concept of impedance first. As shown in the figure, impedance consists of two parts: resistance (i.e., real) and reactance (i.e., imaginary).

$Z_s$ represents series impedance, which is a combination of resistance ($R_s$) and reactance ($X_s$). Impedance can be expressed with magnitude $|Z|$ and phase angle $\theta$.

• When $\theta > 0$, the reactance is inductive.
• When $\theta < 0$, the reactance is capacitive.

There are two reactance types: inductive reactance ($X_L$) and capacitive reactance ($X_C$). They can be expressed as follows:

$X_L = 2 \pi f L$

$X_C = \frac{1}{2 \pi f C}$

Impedance can be measured either in series or in parallel mode. Impedance in parallel mode can be expressed as the reciprocal of admittance (Y). Here, $Z = \frac{1}{Y}$, $Y = G + jB$, where G = Conductance and B = Susceptance.

There are various techniques for the measurement of impedance. The most common method is the nulling-type bridge. When there is no current flow through detector (D), the value of unknown impedance can be expressed as follows:

$Z_x = \frac{Z_1}{Z_2} Z_3$

Different applications use different combinations of L, C, and R as elements of the bridge. Hence, the LCR meter working principle depends on its application usage.

The working principle of an LCR meter involves applying an alternating current (AC) voltage or current signal to the component under test and then measuring the component’s response to that signal. Here’s a breakdown of the working principle:

• Selection of Test Frequency: LCR meters allow users to select the frequency of the AC signal applied to the component. The choice of frequency depends on the characteristics of the component being tested and the required measurement accuracy. Lower frequencies are typically used for measuring inductance, while higher frequencies are used for capacitance measurements.

• Measurement of Impedance (Z): The LCR meter applies an AC signal of the selected frequency to the component under test. The impedance (Z) of the component consists of R, L, and C. At the selected frequency, the impedance is calculated using the relationship between voltage and current as explained above. The impedance is a complex quantity, consisting of both magnitude and phase angle.

• Separation of Components: Once the impedance is measured, the LCR meter separates the components L, C, and R from the impedance using various techniques such as phase-sensitive detection or bridge circuits.

• Measurement of Resistance (R): The resistance component of the impedance is determined by measuring the phase angle between the applied voltage and the current flowing through the component. This phase angle represents the resistive component of the impedance.

• Measurement of Inductance (L) and Capacitance (C): The inductive and capacitive components of the impedance are determined by measuring the phase shift between the applied voltage and the current. By knowing the frequency of the applied signal, the LCR meter can calculate the inductance and capacitance of the component.

• Display of Results: The measured values of resistance, inductance, and capacitance are typically displayed on the LCR meter’s screen or outputted to a computer for further analysis.

Advantages and Disadvantages of LCR Meters

Following are the advantages of LCR meters:

1. It measures passive components with minimal errors. Hence, LCR meters are highly accurate instruments, providing precise measurements of L, C, and R.
2. LCR meters typically offer a wide measurement range, allowing users to measure components with a broad range of values.
3. LCR meters can quickly measure the parameters of electronic components, saving time during testing and production processes.
4. Many modern LCR meters feature automatic measurement capabilities, which streamline the testing process and reduce the likelihood of errors caused by manual operation.
5. LCR meters can measure multiple parameters simultaneously, providing comprehensive insights into the characteristics of electronic components.
6. These instruments are very easy to calibrate.
7. Many companies manufacture LCR meters, offering more features and options for users.

Following are the disadvantages of LCR meters:

1. High-quality LCR meters can be expensive.
2. Operating an LCR meter effectively requires a certain level of technical expertise.
3. Some LCR meters are bulky and not easily portable.
4. LCR meters are typically designed to operate within specific frequency ranges. While they can provide accurate measurements within these ranges, they may not be suitable for components that operate at very high frequencies.
5. LCR meters require regular calibration and maintenance to ensure accurate measurements over time.

LCR Meter Manufacturers or Vendors

Following are some of the best LCR meter manufacturers or vendors:

• Keysight Technologies
• Meco Instruments P.Ltd (<www.mecoinst.com>)
• IET Labs, Inc. (<www.ietlabs.com>)
• Scientific Mes-Technik Pvt. Ltd. INDIA
• Extech Instruments
• InnovateUs Inc.
• Stanford Research Systems, Inc.
• Sigma Instruments

LCR Meter Applications

LCR meters find applications in various industries and fields due to their ability to accurately measure the properties of electronic components. Some common applications are as follows:

• Engineers use LCR meters to characterize passive electronic components such as capacitors, inductors, and resistors during the design and testing of electronic circuits.
• LCR meters are employed in manufacturing facilities to verify the quality and consistency of electronic components.
• LCR meters are utilized in material analysis applications to measure the dielectric properties of materials.
• LCR meters are employed to measure the inductance and quality factor (Q-factor) of transformers and inductors.
• LCR meters can analyze the frequency response of electronic components, providing insights into their behavior across different frequencies.
• In RF (Radio Frequency) and microwave applications, LCR meters are used to measure the impedance of components and circuits. This information helps engineers design impedance-matching networks to optimize power transfer and signal integrity.
• LCR meters are used to measure the impedance of batteries, providing insights into their internal resistance and capacitance.
• LCR meters are valuable tools in educational institutions and research laboratories for teaching basic principles of electronics and conducting experiments on passive components, circuits, and materials.

Conclusion

In summary, the LCR meter works by applying an AC signal to the component under test, measuring the impedance, and then separating the impedance into its individual components of resistance, inductance, and capacitance using various techniques.

LCR meters remain essential tools for engineers, technicians, and researchers involved in electronics design, manufacturing, and testing. The benefits they offer in terms of accuracy, versatility, and efficiency outweigh many of the drawbacks associated with their use.
