Baud Rate Generator VHDL code | Clock Generator,clock divider
This page mentions clock generator or clock divider or baud rate generator vhdl code. It describes application of clock generator or divider or baud rate generator written in vhdl code.
baud rate generator logic diagram

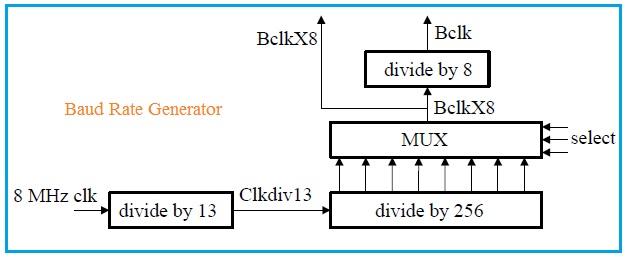

The figure-1 depicts logic diagram of baud rate generator. It is used as clock divider in UART and as frequency divider in digital circuits. Following table mentions different baud rates genarated from basic clock frequency of 8 MHz.
| Select Bits | Baud Rate (bps) |
|---|---|
| 000 | 38462 |
| 001 | 19231 |
| 010 | 9615 |
| 011 | 4808 |
| 100 | 2404 |
| 101 | 1202 |
| 110 | 601 |
| 111 | 300.5 |
Baud Rate Generator VHDL code
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all; -- use '+' operator, CONV_INTEGER func.
entity clk_divider is
port(Sysclk, rst_b: in std_logic;
Sel: in std_logic_vector(2 downto 0);
BclkX8: buffer std_logic;
Bclk: out std_logic);
end clk_divider;
architecture baudgen of clk_divider is
signal ctr1: std_logic_vector (3 downto 0):= "0000"; -- divide by 13 counter
signal ctr2: std_logic_vector (7 downto 0):= "00000000"; -- div by 256 ctr
signal ctr3: std_logic_vector (2 downto 0):= "000"; -- divide by 8 counter
signal Clkdiv13: std_logic;
begin
process (Sysclk) -- first divide system clock by 13
begin
if (Sysclk'event and Sysclk = '1') then
if (ctr1 = "1100") then ctr1 <= "0000";
else ctr1 <= ctr1 + 1; end if;
end if;
end process;
Clkdiv13 <= ctr1(3); -- divide Sysclk by 13
process (Clkdiv13) -- clk_divdr is an 8-bit counter
begin
if (rising_edge(Clkdiv13)) then
ctr2 <= ctr2 + 1;
end if;
end process;
BclkX8 <= ctr2(CONV_INTEGER(sel)); -- select baud rate
process (BclkX8)
begin
if (rising_edge(BclkX8)) then
ctr3 <= ctr3 + 1;
end if;
end process;
Bclk <= ctr3(2); -- Bclk is BclkX8 divided by 8
end baudgen;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all; -- use '+' operator, CONV_INTEGER func.
entity clk_divider is
port(Sysclk, rst_b: in std_logic;
Sel: in std_logic_vector(2 downto 0);
BclkX8: buffer std_logic;
Bclk: out std_logic);
end clk_divider;
architecture baudgen of clk_divider is
signal ctr1: std_logic_vector (3 downto 0):= "0000"; -- divide by 13 counter
signal ctr2: std_logic_vector (7 downto 0):= "00000000"; -- div by 256 ctr
signal ctr3: std_logic_vector (2 downto 0):= "000"; -- divide by 8 counter
signal Clkdiv13: std_logic;
begin
process (Sysclk) -- first divide system clock by 13
begin
if (Sysclk'event and Sysclk = '1') then
if (ctr1 = "1100") then ctr1 <= "0000";
else ctr1 <= ctr1 + 1; end if;
end if;
end process;
Clkdiv13 <= ctr1(3); -- divide Sysclk by 13
process (Clkdiv13) -- clk_divdr is an 8-bit counter
begin
if (rising_edge(Clkdiv13)) then
ctr2 <= ctr2 + 1;
end if;
end process;
BclkX8 <= ctr2(CONV_INTEGER(sel)); -- select baud rate
process (BclkX8)
begin
if (rising_edge(BclkX8)) then
ctr3 <= ctr3 + 1;
end if;
end process;
Bclk <= ctr3(2); -- Bclk is BclkX8 divided by 8
end baudgen;
