Verilog Code for 1 to 4 DEMUX | 1 to 4 DEMUX Verilog Code

This page of Verilog source code section covers 1 to 4 DEMUX Verilog code. The block diagram and truth table of 1 to 4 DEMUX Verilog code is also mentioned.

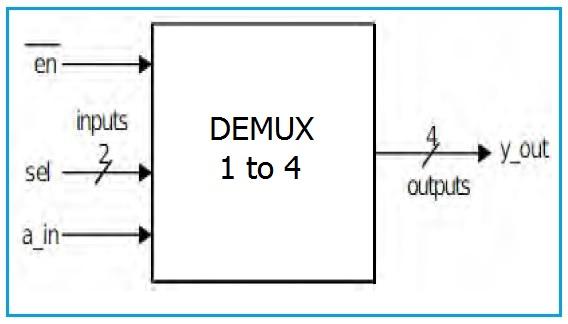

Block Diagram of 1 to 4 DEMUX

1 to 4 DEMUX Block Diagram

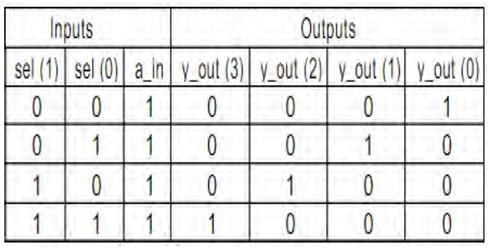

Truth Table of 1 to 4 DEMUX

1 to 4 DEMUX Truth Table

1 to 4 DEMUX Verilog code

module demux1_4(a_in, sel, y_out);
input a_in;
input [1:0] sel;
output [3:0] y_out;
reg [3:0] y_out;
always @(a_in, sel)
case (sel)
2'b00:begin y_out[0]=a_in; y_out[1]= 1'b0;
y_out[2]= 1'b0;y_out[3]=1'b0; end
2'b01: begin y_out[0]= 1'b0;y_out[1]=a_in;
y_out[2]= 1'b0;y_out[3]=1'b0; end
2'b10: begin y_out[0]= 1'b0;y_out[1]=1'b0;
y_out[2]=a_in; y_out[3]=1'b0; end
2'b11: begin y_out[0]= 1'b0; y_out[1]= 1'b0;
y_out[2]=1'b0;y_out[3]=a_in; end
default: y_out=3'b000;


Refer following as well as links mentioned on left side panel for useful VHDL codes.
D Flipflop
T Flipflop
Read Write RAM
4 bit binary counter
Radix4 Butterfly
16QAM Modulation
2bit Parallel to serial

USEFUL LINKS to Verilog Codes

Following are the links to useful Verilog codes.
Low Pass FIR Filter
Asynchronous FIFO design with verilog code
D FF without reset
D FF synchronous reset
1 bit 4 bit comparator
All Logic Gates
