RF Propagation calculator | Formula for RF Propagation

This page covers RF Propagation calculator. The formula used in RF Propagation calculator is also mentioned.

Frequency of operation in MHz (input1) :

Receiver sensitivity in dBm (input2) :

Transmitter Power Out in Watts (input3) :

Transmitter Antenna Height in Meters (input4) :

Receiver Antenna Height in Meters (input5) :

Communication distance in Km (input6) :


Maximum Radio Distance between Tx and Rx (Km) :

Path Loss as per communication distance (dBm) :

EXAMPLE of RF Propagation calculator:
INPUTS:
Fr (MHz) = 850, Rx sensitivity = -106 dBm, Pt (Watts) = 5, Ht = 4.2 meters, Hr = 4.2 meters, Distance = 15 Km
OUTPUTS:
Max. radio distance between Tx-Rx = 16.39 Km, Path Loss = 114.54 dB

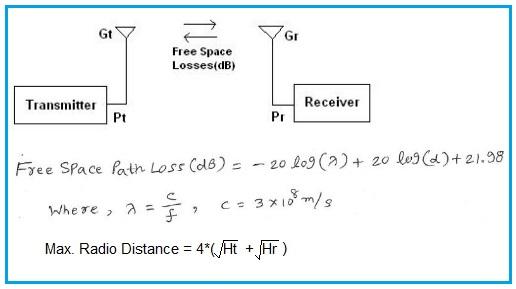

Formula/Equation used in RF Propagation calculator

Following formula/equation is used in this RF Propagation calculator.

rf propagation formula
