Crest Factor and Form Factor: Formulas and Calculators

In electrical and signal analysis, understanding waveforms is essential. The form factor and crest factor are two critical measurements that reveal insights into the shape and peaks of waveforms, often used in applications like power distribution and audio engineering. Both are critical in signal analysis, helping to determine the efficiency and quality of a signal. This page provides a detailed explanation of the form factor formula and crest factor formula, provides easy-to-use calculators, and explores their practical uses in various fields.

What is Form Factor?

Form factor is a measure of the shape of an AC waveform. It is defined as the ratio of the root mean square (RMS) value of the waveform to its average (or mean) value over a complete cycle. Mathematically, it can be expressed by the following equation. It’s crucial for evaluating the shape of a waveform, especially in sinusoidal signals. The form factor provides insight into how much a waveform deviates from a pure sine wave.

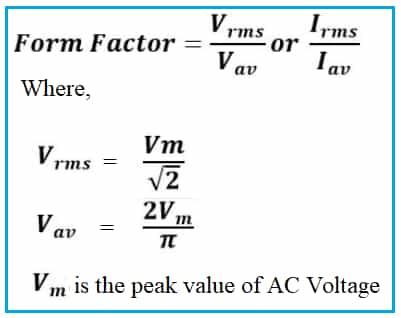

Form Factor Formula

As mentioned in the equation, Form Factor = RMS value/Average value

Here, the RMS value represents the effective or equivalent DC value of the AC waveform, while the average value is simply the arithmetic mean of the waveform over a full cycle.

The form factor helps in characterizing how smooth or distorted an AC waveform is. A perfect sinusoidal waveform, which is produced by an ideal AC generator, has a form factor of 1.414 (equals the square root of 2). Practically, for most waveforms, it will be greater than 1, indicating some level of distortion from a perfect sine wave. This measurement is used in various applications, especially in AC power supply calculations, to understand waveform efficiency and predict performance in electrical systems.

Form Factor Calculator for Sinusoidal AC Waveform

Using a form factor calculator simplifies the process by automatically computing the ratio based on RMS and average values. This calculator can quickly determine the form factor for different waveforms, saving time and reducing manual errors.

To use the calculator, enter your waveform’s Peak Voltage value, and it will provide the RMS and average values and the precise form factor instantly.

Example of form factor calculation:

• INPUTS: Vpeak = 15 V
• OUTPUTS: Vrms= 10.60 V , Vavg= 9.54 V, Form Factor = 1.11

What is Crest Factor?

The crest factor is another waveform measurement, describing the ratio of the peak value of a waveform to its RMS value. The crest factor is particularly useful in assessing how extreme the peaks in a waveform are compared to its overall level, which helps in audio engineering, signal processing, and power supply design.

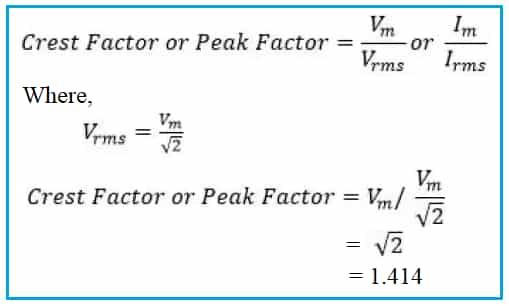

Crest Factor Formula

As mentioned in the equation, the Crest factor is a measure of the peak to RMS value of an AC waveform. It indicates how much the waveform’s amplitude exceeds its RMS value. It is often used to describe the peak amplitude of transient signals such as voltage spikes or high-frequency disturbances.

As mentioned in the equation, Crest Factor = Peak value/RMS value

The ideal sinusoidal waveform will have a crest factor equal to the square root of 2, i.e., 1.414. For non-sinusoidal waveforms or distorted waveforms, the crest factor will be higher, which indicates distortion. This ratio indicates how “spiky” or “peaked” a waveform is. Higher crest factors can imply that the waveform has high transient peaks, which may affect the stability and reliability of power systems if not adequately managed.

Crest Factor Calculator for Sinusoidal AC Waveform

The calculator calculates the crest factor for a sinusoidal AC waveform from RMS and Peak voltage values. This tool is valuable in fields where accurate peak assessments are critical. For accurate results, use the crest factor calculator to assess waveforms with significant peaks relative to their RMS values, such as in audio signal analysis or AC circuit design.

Example of crest factor calculation:

• INPUTS: Vrms= 8.484 (v) , Vpeak= 12 (v)
• OUTPUTS: CREST FACTOR = 1.41

Combined Calculator as per RMS, Peak, and Average Values

The calculator is useful for non-sinusoidal waveforms and distorted waveforms.

EXAMPLE:

• INPUTS: Vrms= 10 (v) , Vaverage = 7 (v) , Vpeak= 15 (v)
• OUTPUTS: FORM FACTOR = 1.428 CREST FACTOR = 1.5

Practical Applications

Both the form factor and crest factor are essential in fields like electrical engineering, audio processing, and power system design. They aid in waveform analysis, helping engineers understand signal properties to optimize performance and ensure safety.

• Electrical Engineering: Used in AC circuit analysis and power distribution.
• Audio Engineering: Assists in controlling peak levels in audio signals.
• Power Systems: Helps manage transient loads and avoid system overloads.

Conclusion

In summary, the Form factor and crest factor are indispensable tools for analyzing waveforms, offering insights that enhance the safety, efficiency, and performance of electrical systems and signals. By understanding these formulas and using calculators for quick results, professionals can make more informed decisions across fields such as audio processing, electrical engineering, and power systems. import WaveformCalculator from ”./elements/WaveformCalculator.astro”;
